X964F

Tesla Part Number

1015287-10-A

Connector

MOLEX 33472-2006

Color

BK

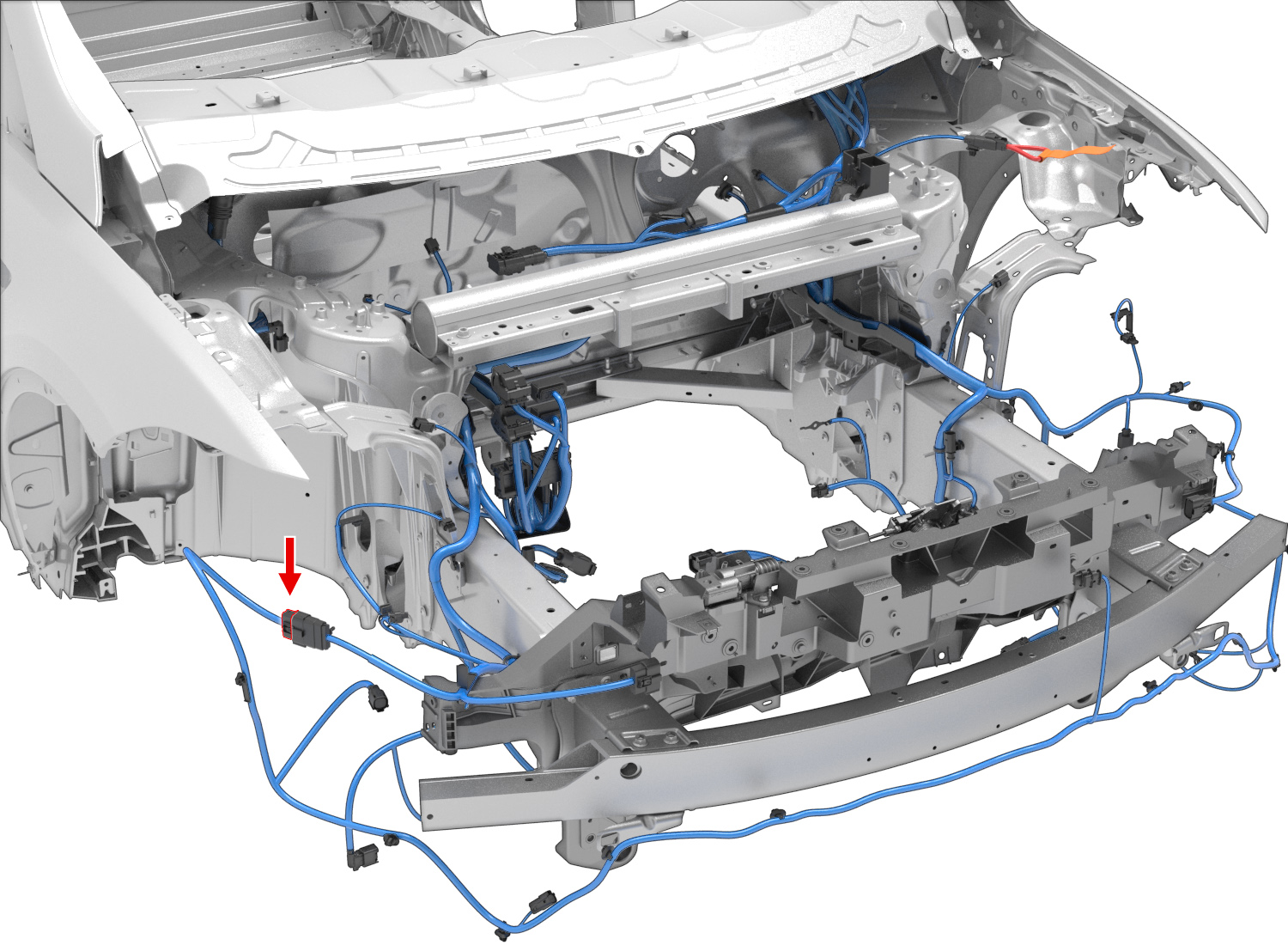

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3001	1.5x0.8F	BK	1.50	TESLA	MAT-120-240
2	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X263	1
3	unused
4	unused
5	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X495	4
6	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X495	2
7	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X495	1
8	MOLEX	33012-3004	1.5x0.8F	RD	0.50	TESLA	MAT-120-240	X263	3
9	MOLEX	33012-3002	1.5x0.8F	BU	1.00	TESLA	MAT-120-240	X597	1
10	MOLEX	33012-3002	1.5x0.8F	WH	1.00	TESLA	MAT-120-240	X597	2
11	MOLEX	33012-3002	1.5x0.8F	RD	1.00	TESLA	MAT-120-240	X555	1
12	MOLEX	33012-3004	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X262	1
13	unused
14	unused
15	MOLEX	33012-3004	1.5x0.8F	RD	0.50	TESLA	MAT-120-240	X262	4
16	MOLEX	33012-3004	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X263	4
17	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X262	3
18	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X263	2
19	MOLEX	33012-3004	1.5x0.8F	TN	0.50	TESLA	MAT-120-240	X262	2
20	MOLEX	33012-3002	1.5x0.8F	GN	1.00	TESLA	MAT-120-240	X128	1
