G110

Tesla Part Number
1617217-00-A
Connector
ROYAL PS R8651-M6
Color
SI

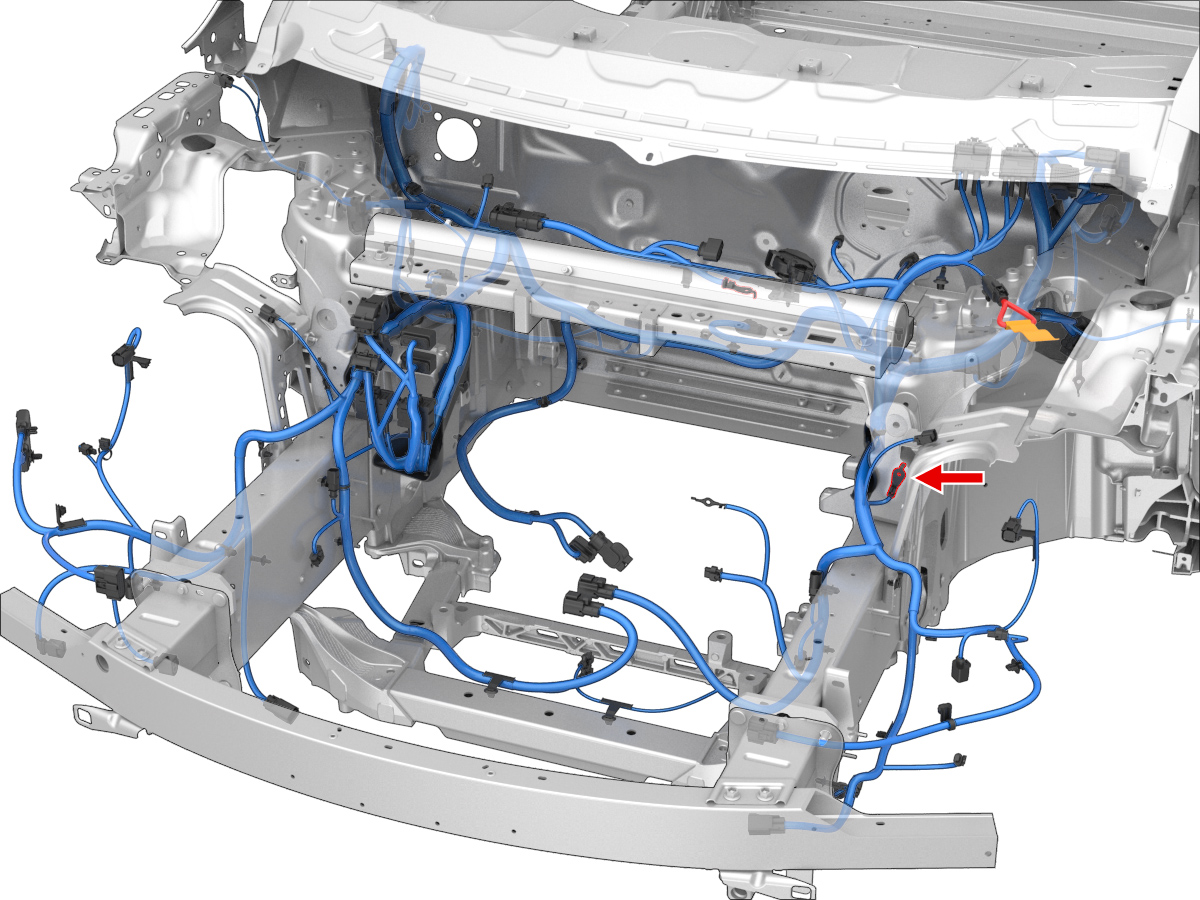

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BK16X1522
