G150

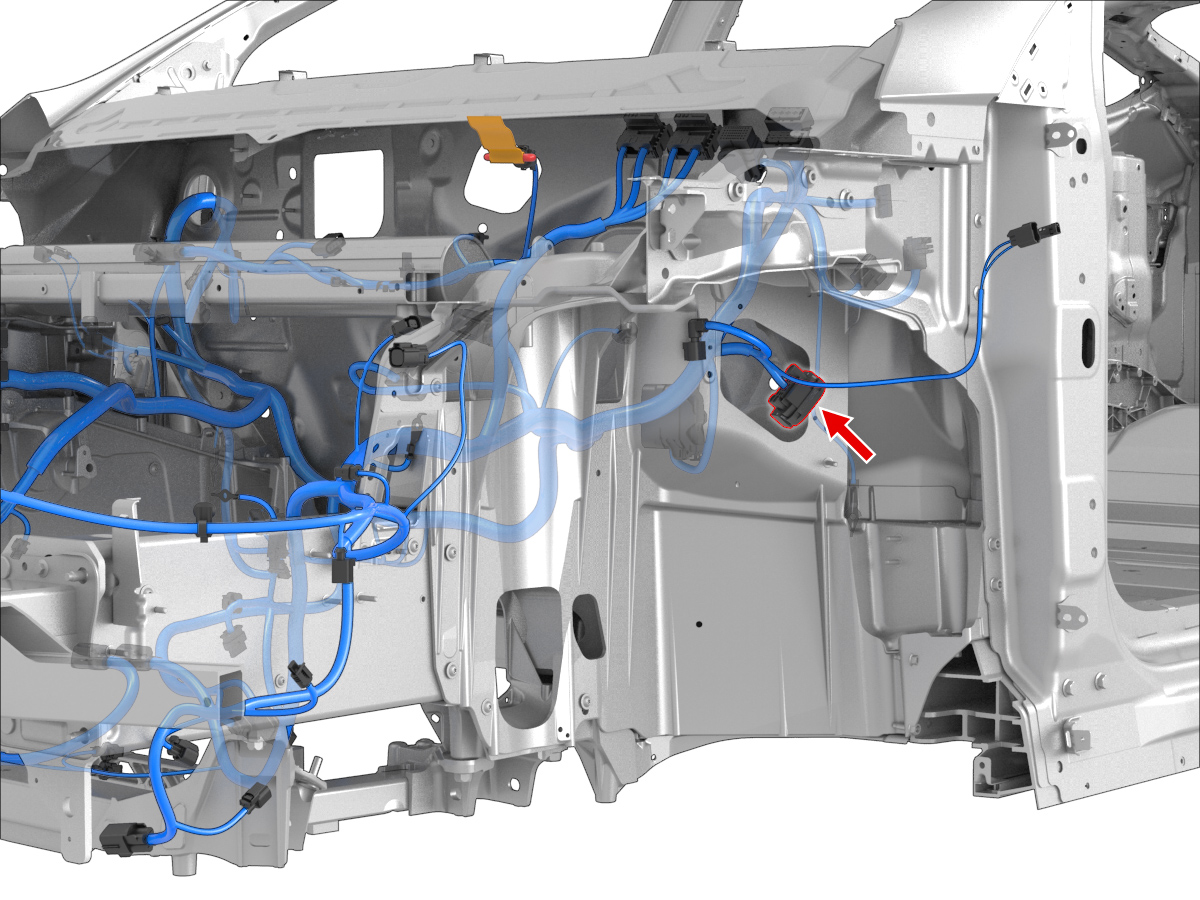

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 10780234 | 9.5FS | BK | 10.00 | DELPHI | 10889241 | G130 | 1 |
| 2 | DELPHI | 35138798 | 1.5 | BK | 1.50 | DELPHI | 13582732 | X995F | 10 |
| 3 | DELPHI | 35138800 | 1.5 | BK | 0.50 | DELPHI | 13582731 | X907F | 3 |
| 4 | DELPHI | 35138799 | 1.5 | BK | 1.00 | DELPHI | 13582730 | X301 | 1 |
| 5 | DELPHI | 35138799 | 1.5 | BK | 1.00 | DELPHI | 13582730 | X198 | 2 |
| 6 | DELPHI | 33351050 | 6.35F | BK | 4.00 | KSE | K60F00601 | X150 | 9 |
| 7 | DELPHI | 35138800 | 1.5 | BK | 0.50 | DELPHI | 13582731 | X268 | 2 |
| 8 | DELPHI | 35138798 | 1.5 | BK | 1.50 | DELPHI | 13582732 | X995F | 17 |
| 9 | DELPHI | 35138798 | 1.5 | BK | 1.50 | DELPHI | 13582732 | X260 | 6 |
| 10 | DELPHI | 35138799 | 1.5 | BK | 1.00 | DELPHI | 13582730 | X196 | 2 |
| 11 | DELPHI | 33350989 | 2.8x0.8F | BK | 2.50 | DELPHI | 33512180 | X300 | 2 |
| 12 | unused | ||||||||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | DELPHI | 33351050 | 6.35F | BK | 4.00 | KSE | K60F00601 | X532 | 1 |
