X001

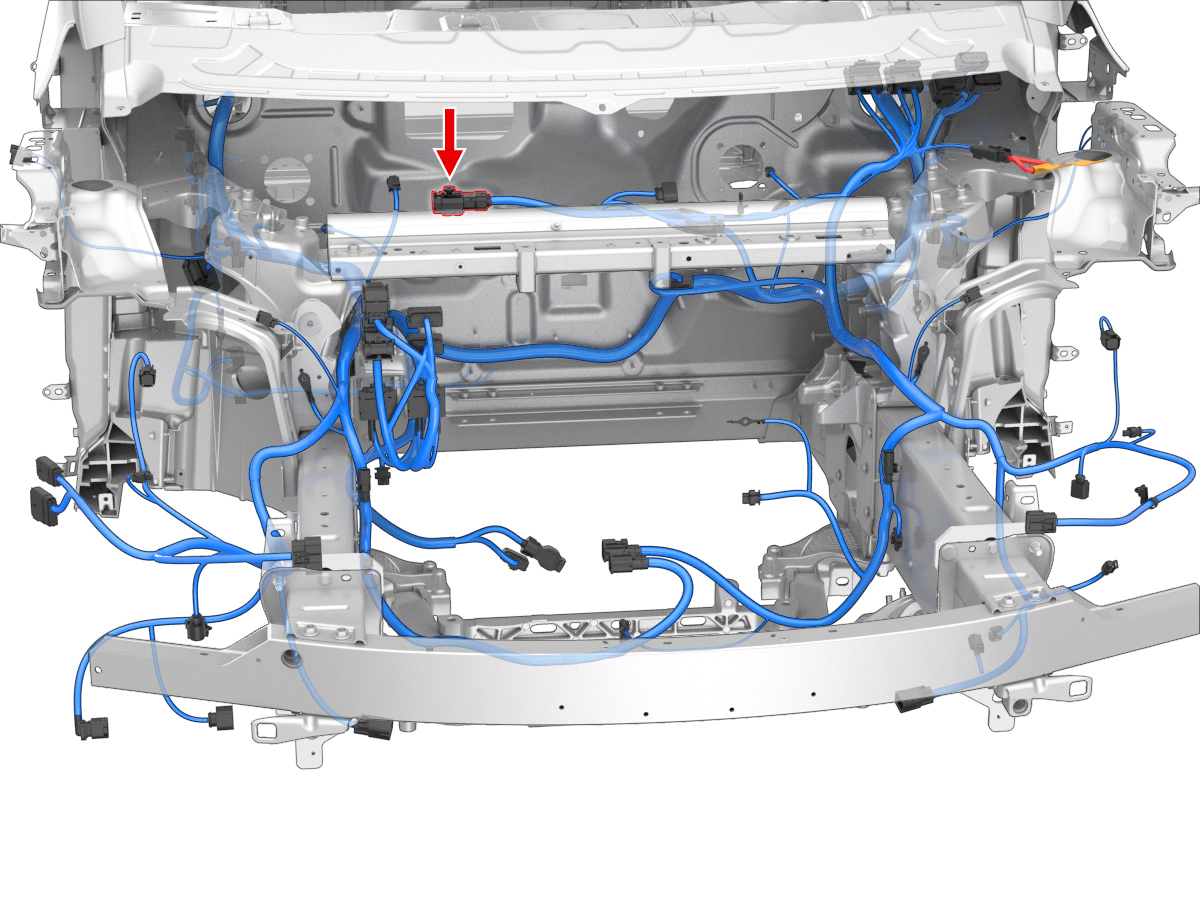

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JONHON | 85562302-01 | PWR,M | RD | 25 | PIA | PIA-SEAL | X026 | 3 |
| 2 | JONHON | 85562302-01 | PWR,M | BK | 25 | PIA | PIA-SEAL | G101 | 1 |
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | JONHON | 857111838-01 | SIG,F | GN | 0.35 | PIA | PIA-SEAL | X025 | J4 |
