X006

Tesla Part Number
1615741-00-B
Connector
ROYAL PS RP900484
Color
BK

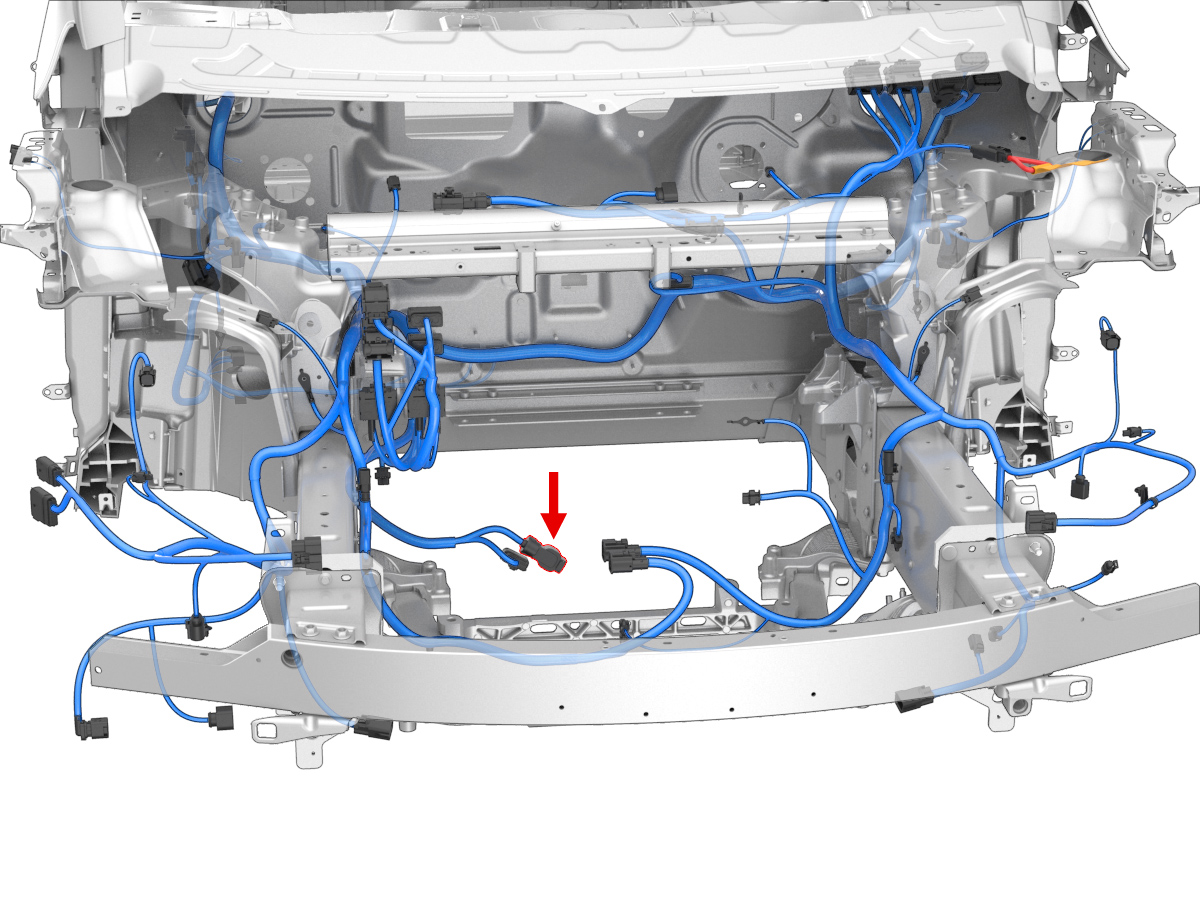

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROYAL PSRP7000021xBEAMRD40ROYAL PSRP900007X0143
