X013

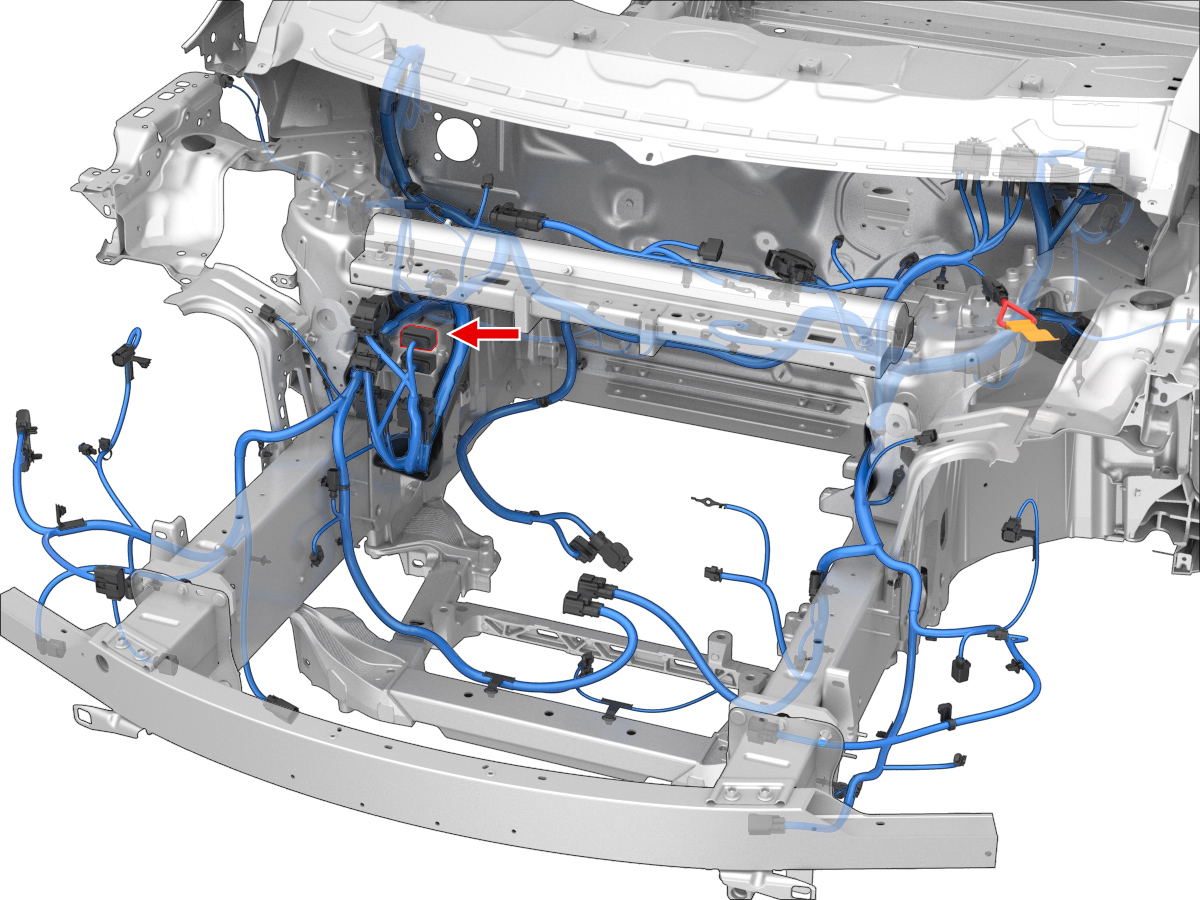

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-1241410-1 | 6.3x0.8F | BK | 0.50 | AMP | 2177018-1 | ||
| 2 | AMP | 1241418-4 | 6.3x0.8F | RD | 6.00 | AMP | 1719043-1 | X611 | 3 |
| 3 | AMP | 1241418-4 | 6.3x0.8F | BK | 6.00 | AMP | 1719043-1 | X611 | 2 |
| 4 | AMP | 1241418-4 | 6.3x0.8F | WH | 6.00 | AMP | 1719043-1 | X611 | 1 |
