X025

Tesla Part Number

1588681-00-A

Connector

MOLEX 34885-5512

Color

BK

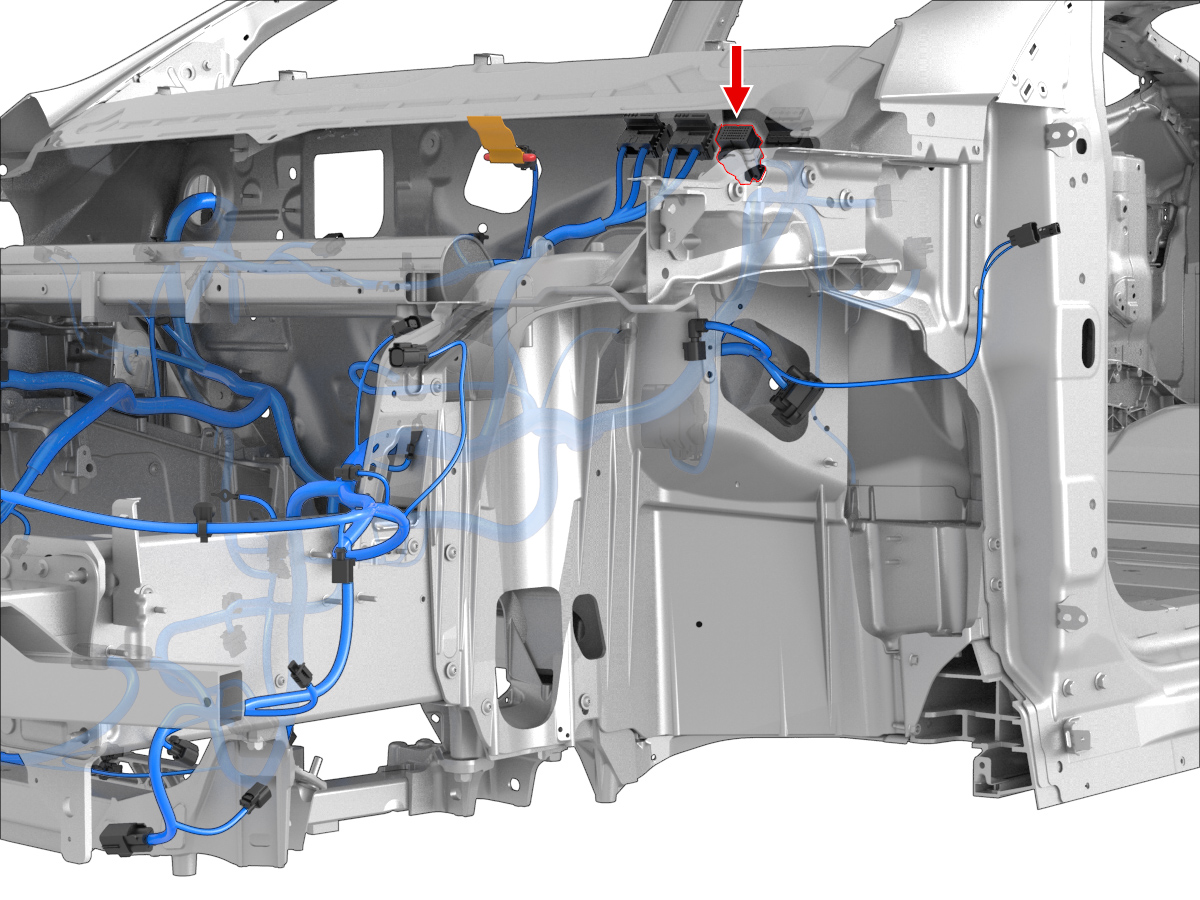

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
A1	MOLEX	34805-0413	1.5x0.8F	RD	1.50	TESLA	MAT-160-280	X260	4
A2	unused
A3	unused
A4	unused
A5	unused
B1	MOLEX	34805-0413	1.5x0.8F	VT	2.00	TESLA	MAT-160-280	X151	25
B2	unused
B3	unused
B4	unused
B5	unused
C1	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190
C2	MOLEX	34803-3411	0.64x0.64F	BU	0.35	TESLA	MAT-120-190	X907F	5
C3	MOLEX	34803-3412	0.64x0.64F	BK	0.50	TESLA	MAT-120-190	X010	H1
C4	MOLEX	34803-3411	0.64x0.64F	RD	0.35	TESLA	MAT-120-190	X963M	3
C5	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190	X963M	2
D1	MOLEX	34803-3411	0.64x0.64F	BN/WH	0.35	TESLA	MAT-120-190
D2	MOLEX	34803-3411	0.64x0.64F	GY	0.35	TESLA	MAT-120-190	X037	7
D3	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X011	15
D4	MOLEX	34803-3412	0.64x0.64F	GN	0.50	TESLA	MAT-120-190	X963M	1
D5	MOLEX	34803-3412	0.64x0.64F	VT	0.50	TESLA	MAT-120-190	X268	1
E1	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X151	14
E2	unused
E3	MOLEX	34803-3411	0.64x0.64F	WH	0.35	TESLA	MAT-120-190	X011	48
E4	MOLEX	34803-3411	0.64x0.64F	TN	0.35	TESLA	MAT-120-190	X964M	18
E5	MOLEX	34803-3411	0.64x0.64F	GY	0.35	TESLA	MAT-120-190	X151	28
F1	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X151	26
F2	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X165	3
F3	MOLEX	34803-3411	0.64x0.64F	GN	0.35	TESLA	MAT-120-190	X011	47
F4	MOLEX	34803-3411	0.64x0.64F	BU	0.35	TESLA	MAT-120-190	X165	1
F5	MOLEX	34803-3411	0.64x0.64F	RD	0.35	TESLA	MAT-120-190	X543	1
G1	MOLEX	34803-3411	0.64x0.64F	BU	0.35	TESLA	MAT-120-190	X057	17
G2	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X165	2
G3	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X037	16
G4	unused
G5	unused
H1	MOLEX	34803-3411	0.64x0.64F	BU/WH	0.35	TESLA	MAT-120-190	X057	16
H2	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X057	1
H3	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X037	17
H4	unused
H5	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X037	24
J1	unused
J2	MOLEX	34803-3411	0.64x0.64F	TN	0.35	TESLA	MAT-120-190	X543	3
J3	MOLEX	34803-3412	0.64x0.64F	BU	0.50	TESLA	MAT-120-190	X260	5
J4	MOLEX	34803-3411	0.64x0.64F	GN	0.35	TESLA	MAT-120-190	X001	5
J5	unused
K1	unused
K2	unused
K3	MOLEX	34805-0412	1.5x0.8F	BK	0.75	TESLA	MAT-160-280
K4	MOLEX	34805-0412	1.5x0.8F	BK	0.75	TESLA	MAT-160-280
K5	MOLEX	34805-0412	1.5x0.8F	RD	1.00	TESLA	MAT-160-280	X509	1
L1	MOLEX	34805-0412	1.5x0.8F	VT	1.00	TESLA	MAT-160-280	X507	3
L2	MOLEX	34805-0412	1.5x0.8F	WH	1.00	TESLA	MAT-160-280	X507	2
L3	MOLEX	34805-0412	1.5x0.8F	GN	1.00	TESLA	MAT-160-280	X507	1
L4	MOLEX	34805-0412	1.5x0.8F	VT	1.00	TESLA	MAT-160-280	X509	3
L5	MOLEX	34805-0412	1.5x0.8F	WH	1.00	TESLA	MAT-160-280	X509	2
