X030A

Tesla Part Number

1506907-02-A

Connector

SUMITOMO 6098-8950

Color

WH

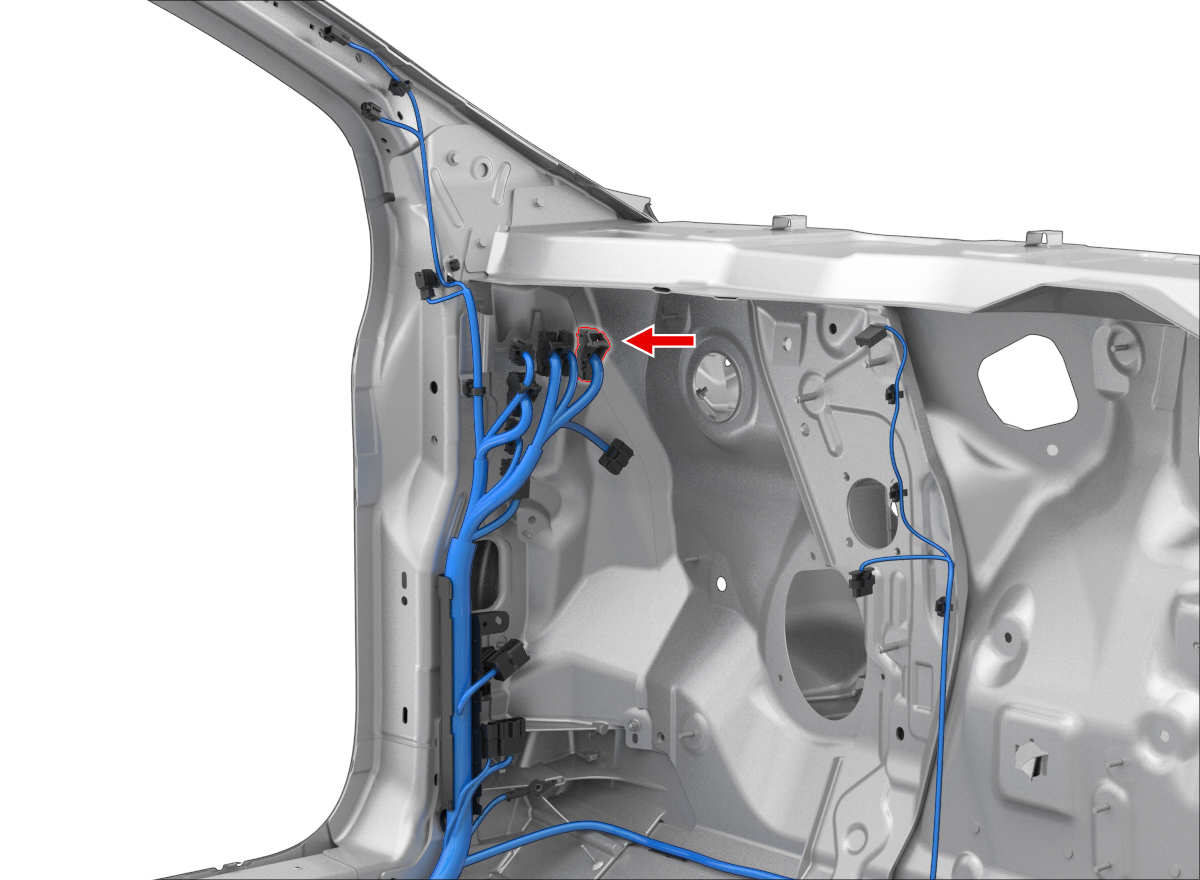

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	71
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X982F	15
3	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X996M	16
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X324	6
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X324	5
7	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X324	3
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X982F	8
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X982F	2
10	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	7
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	6
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35
13	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X201	72
14	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X982F	14
15	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X996M	15
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X324	4
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X324	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X324	2
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X983F	18
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X983F	10
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X982F	3
23	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	8
24	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	5
25	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35
26	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			X353	8
27	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X353	5
28	unused
29	unused
30	SUMITOMO	8240-0214	1.5x0.64F	TN	1.50			X970M	11
31	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X970M	1
32	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X104	10
