X030B

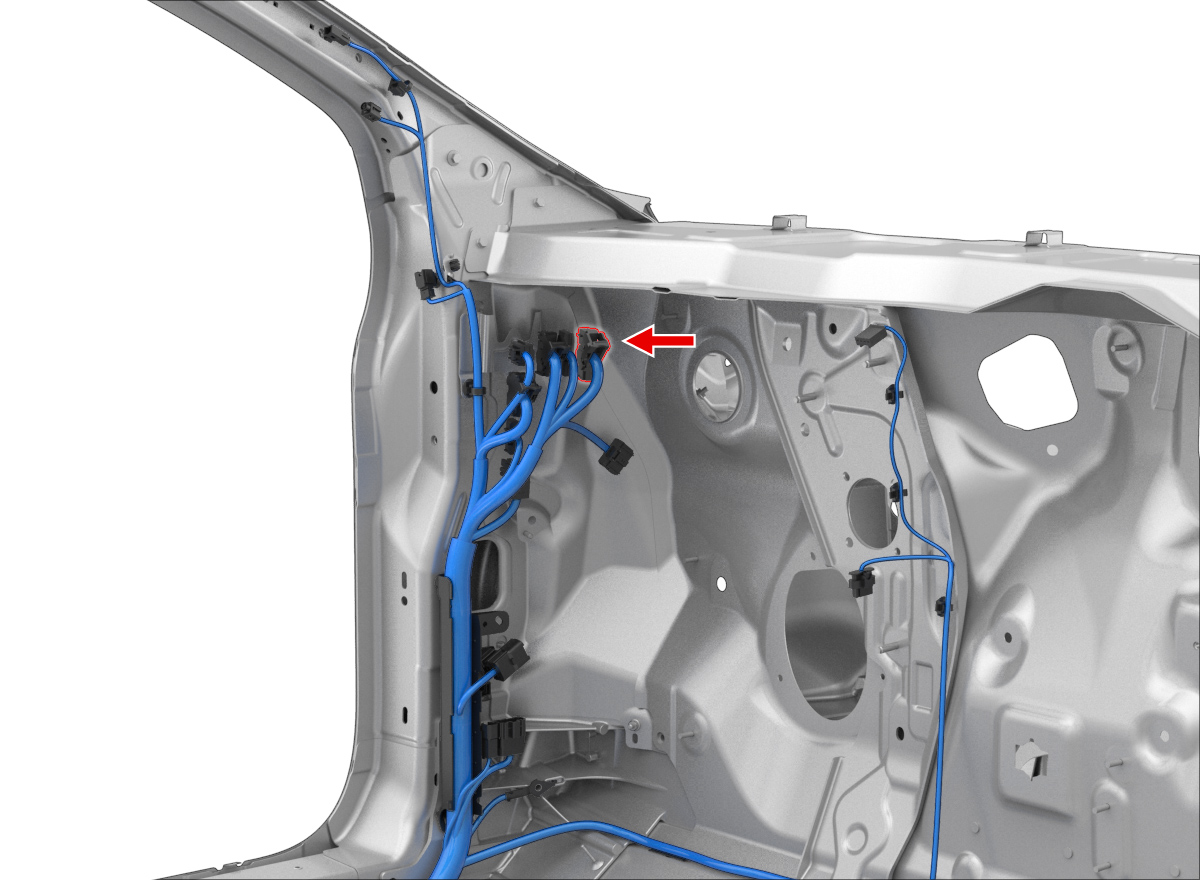

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 1.50 | X164 | 4 | ||
| 2 | unused | ||||||||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | GN | 2.00 | X992M | 9 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X992M | 1 | ||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
