X032

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

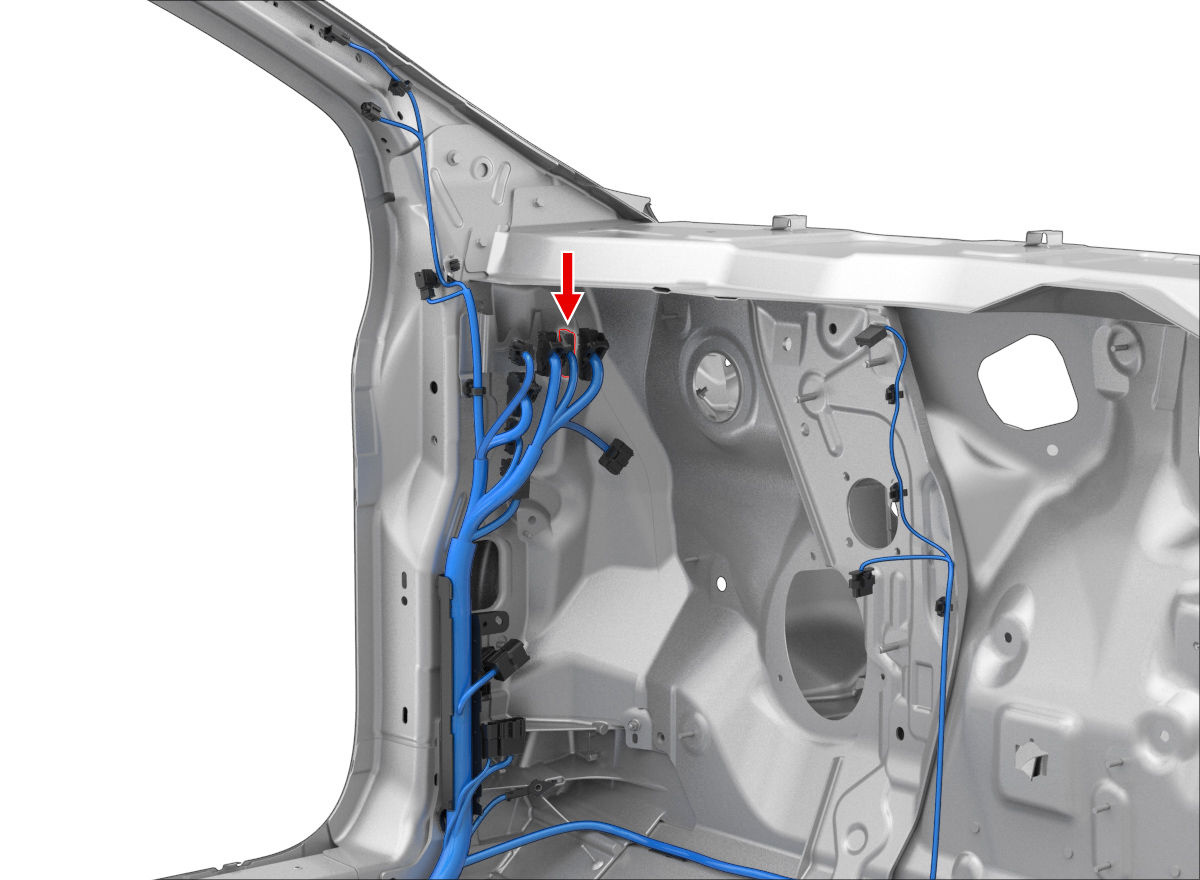

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X164	3
3	unused
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X491	1
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X168	1
8	unused
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X427	1
11	unused
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X970M	3
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X427	2
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X200	51
17	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200	52
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X983F	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X983F	2
20	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X983F	6
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X983F	14
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X983F	3
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X983F	17
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X983F	13
25	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X983F	4
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X983F	16
27	unused
28	unused
29	unused
30	unused
31	unused
32	unused
33	unused
34	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X982F	4
35	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X270	4
36	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X293	1
