X033A

Tesla Part Number

1048099-00-A

Connector

YAZAKI 7287-1918

Color

WH

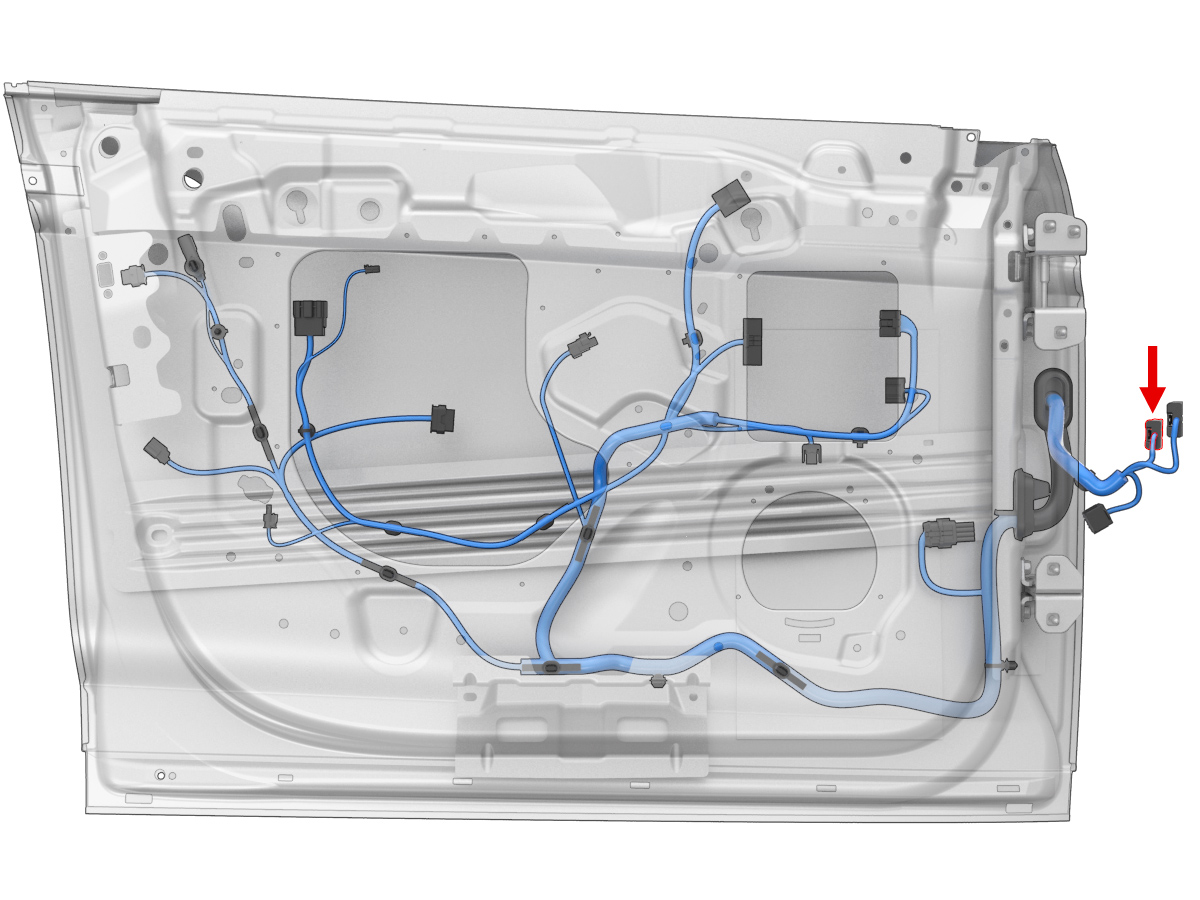

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
3	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X373	1
4	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X373	6
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X373	2
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X920F	15
7	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X920F	5
8	unused
9	unused
10	unused
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X920F	1
13	unused
14	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X373	3
15	unused
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X920F	3
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X920F	16
19	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X920F	2
20	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X361	30
21	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X361	31
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X920F	4
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X920F	9
24	unused
25	unused
26	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X373	4
