X033B

Tesla Part Number

1042621-02-A

Connector

SUMITOMO 6098-5629

Color

BU

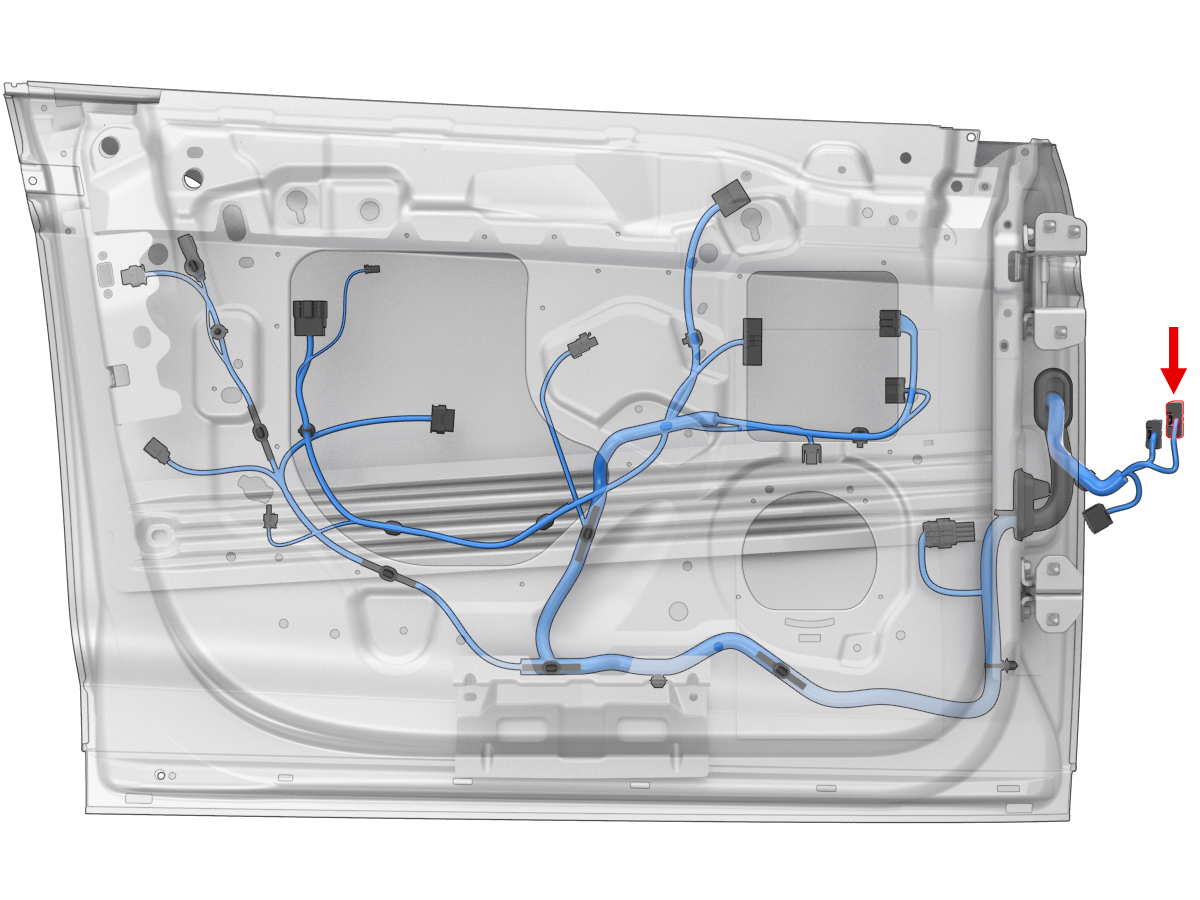

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X204	1
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X204	2
4	unused
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X920F	13
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X920F	14
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X920F	11
10	unused
11	unused
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X920F	6
14	unused
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
