X035

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

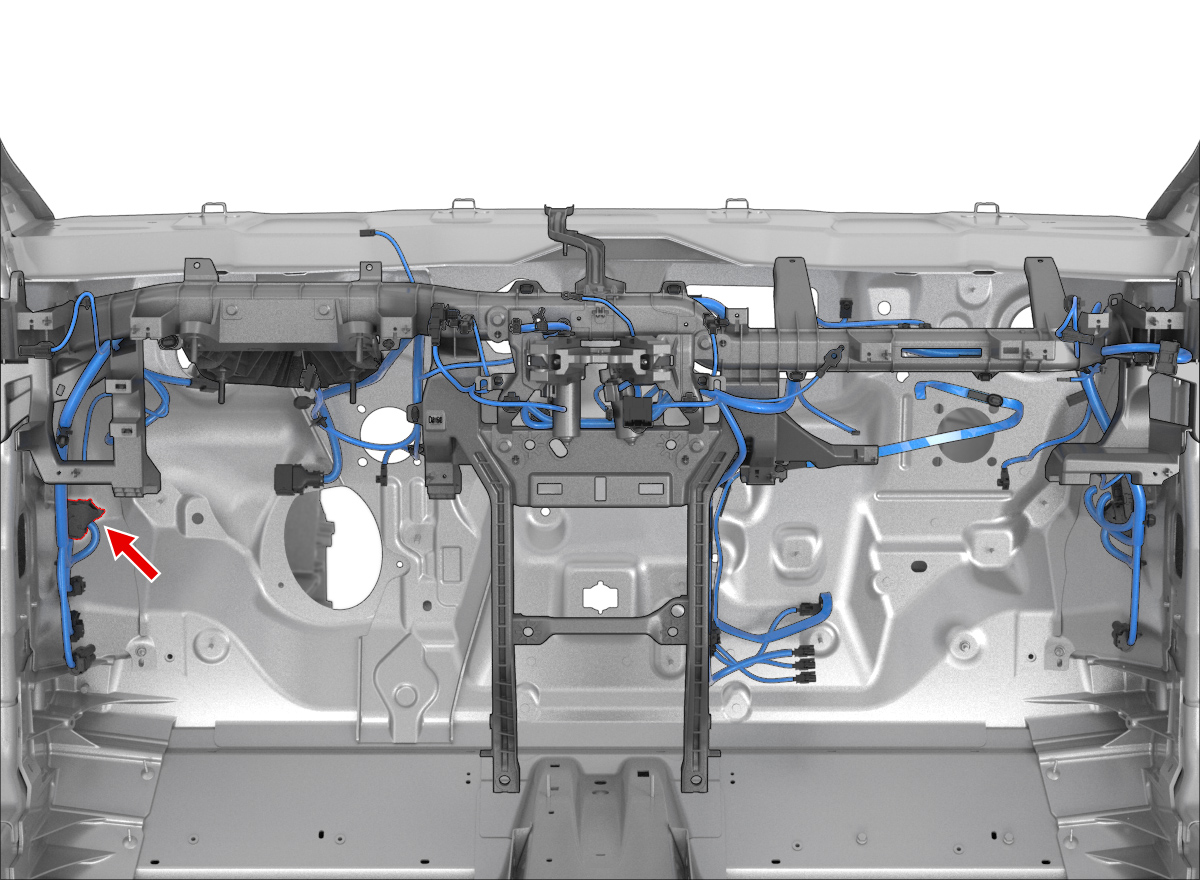

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X183	3
2	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X183	1
3	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X189	2
4	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X950F	23
5	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X950F	22
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X437	8
7	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X184	4
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X183	4
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X437	1
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X180	3
11	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X180	2
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X178	11
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X178	16
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X178	3
15	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X950F	20
16	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00
17	SUMITOMO	8240-0213	1.5x0.64F	GY	0.75			X180	7
18	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X950F	21
19	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X950F	19
20	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X950F	18
21	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X437	7
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X280	1
23	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X178	6
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X178	14
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X178	8
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X438	2
27	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X438	1
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X180	1
29	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X437	10
30	unused
31	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X184	1
32	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X184	3
33	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X189	5
34	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X189	6
35	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X189	1
36	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X950F	13
37	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X950F	24
38	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
39	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X189	7
40	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X189	11
41	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X180	14
42	unused
43	unused
44	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X437	9
45	unused
