X039

Tesla Part Number

1048099-00-A

Connector

YAZAKI 7287-1918

Color

WH

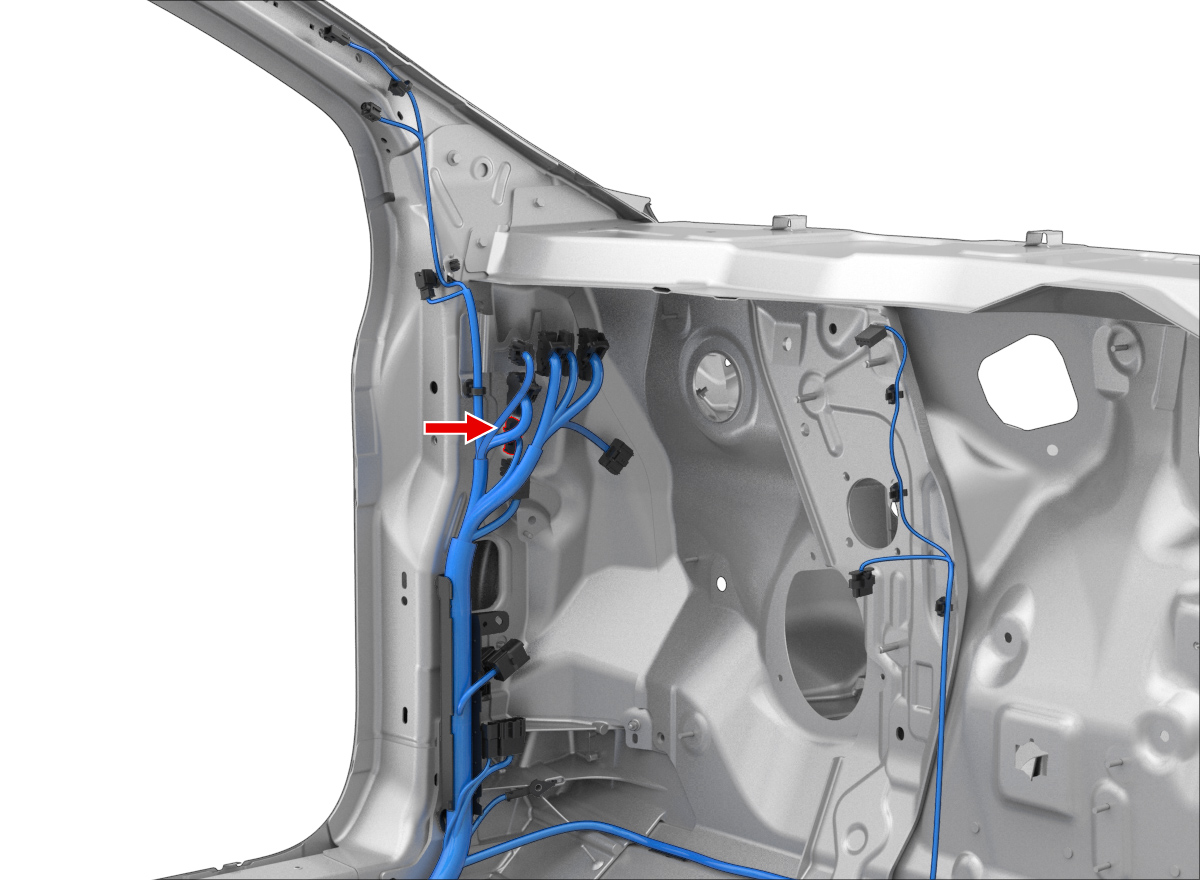

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X983F	5
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X983F	15
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X981M	8
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X791	10
10	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X791	4
11	unused
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X982F	7
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X353	2
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X353	3
20	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X353	4
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X353	1
22	unused
23	unused
24	unused
25	unused
26	unused
