X041

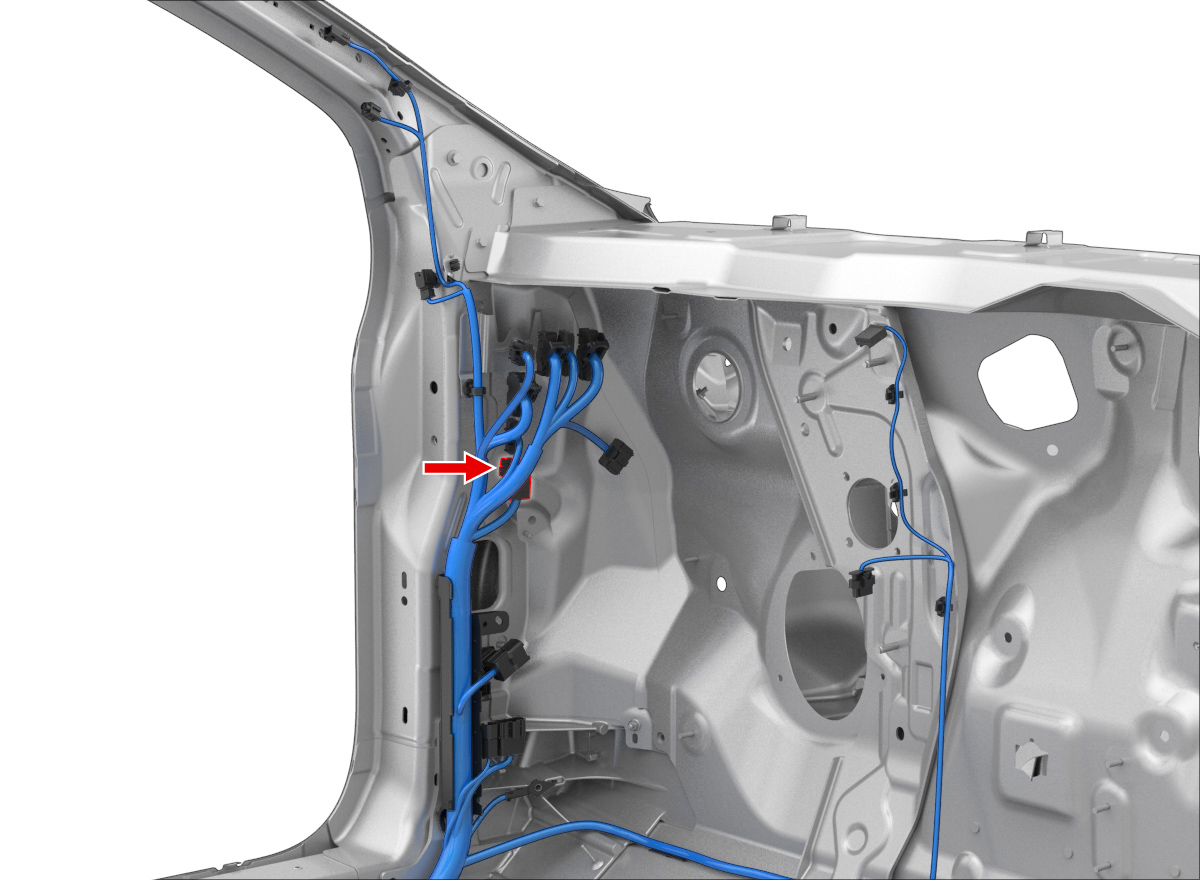

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LEAR | E00319200 | 6.3x0.8F | RD/YE | 10.00 | ||||
| 2 | LEAR | E00319200 | 6.3x0.8F | YE | 3.00 | X276 | 3 |
