X052

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

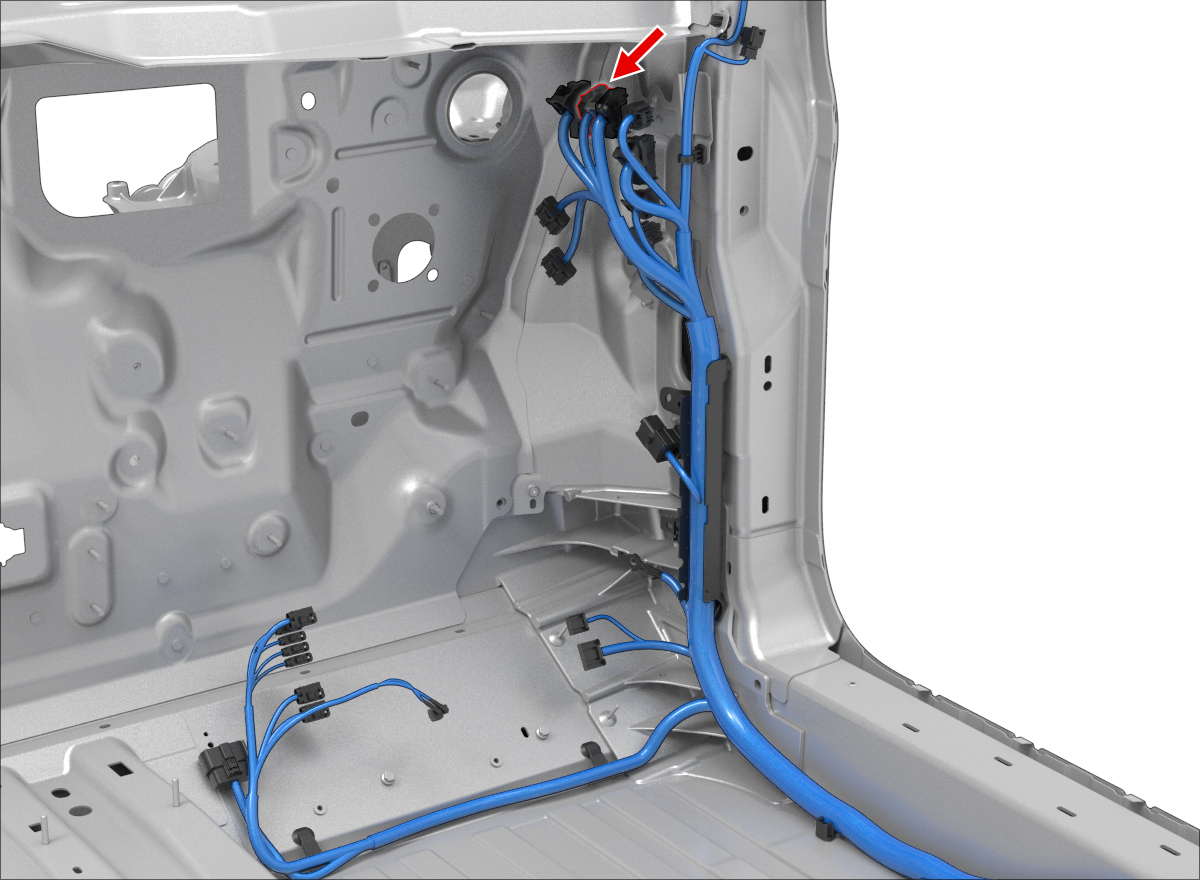

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X996F	15
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X174	5
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X792	12
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X954M	3
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954M	6
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X954M	13
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X955M	7
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X954M	11
13	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	10
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X954M	12
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X996F	16
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X174	6
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X792	1
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X488	1
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X955M	2
25	unused
26	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X457	2
27	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X971M	15
28	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X971M	11
29	unused
30	unused
31	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X457	1
32	unused
33	unused
34	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X978M	13
35	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X978M	6
36	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X978M	16
