X057

Tesla Part Number

1048099-03-A

Connector

YAZAKI 7287-1918-90

Color

BU

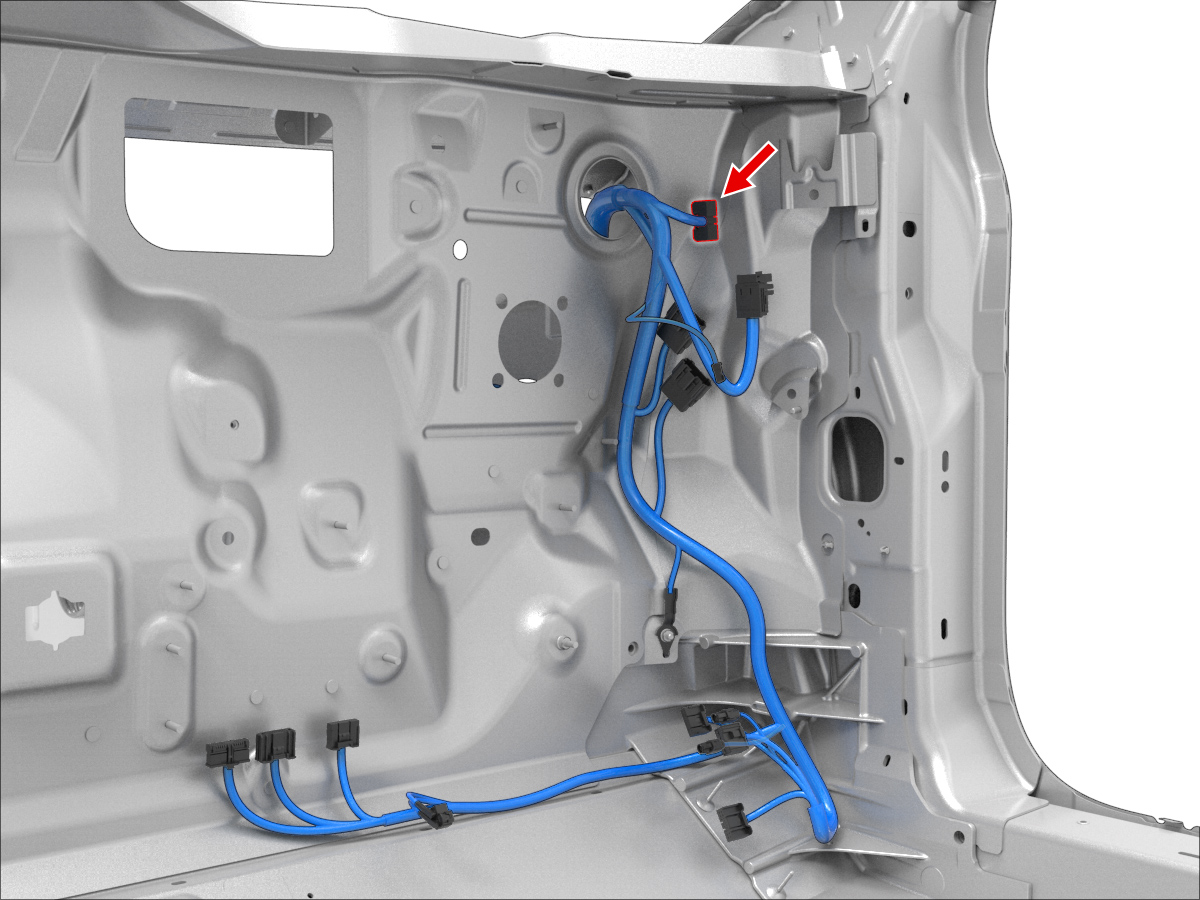

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X025	H2
2	unused
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X010	G2
5	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X010	F1
6	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X906F	15
7	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X906F	16
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X990F	1
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X010	G1
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X126	1
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X126	2
12	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X011	45
13	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X011	46
14	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X964M	16
15	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X990F	4
16	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X025	H1
17	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X025	G1
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X964M	5
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X964M	4
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X964M	13
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X964M	14
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X964M	12
23	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X964M	15
24	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X126	11
25	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X126	12
26	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X964M	11
