X060A

Tesla Part Number

1506908-02-A

Connector

SUMITOMO 6098-8953

Color

WH

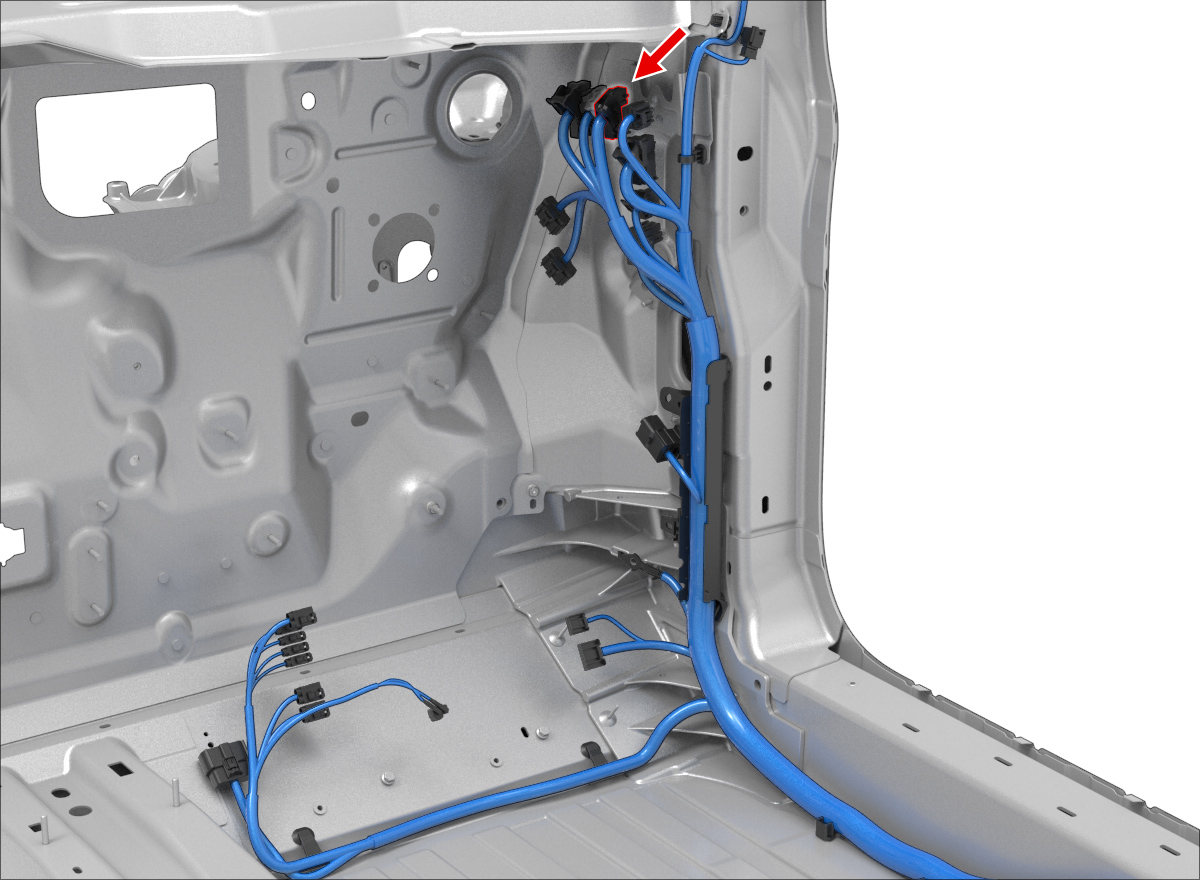

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X997F	6
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X914F	17
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X1001	9
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X488	9
5	unused
6	unused
7	unused
8	unused
9	unused
10	unused
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X272	4
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X978M	14
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X971M	10
14	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X997F	5
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X914F	16
16	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X1001	8
17	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X488	11
18	unused
19	unused
20	unused
21	unused
22	unused
23	unused
24	unused
25	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X914F	15
26	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X490	3
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X978M	5
28	unused
29	unused
30	unused
31	unused
32	unused
33	unused
34	unused
35	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X955M	10
