X060B

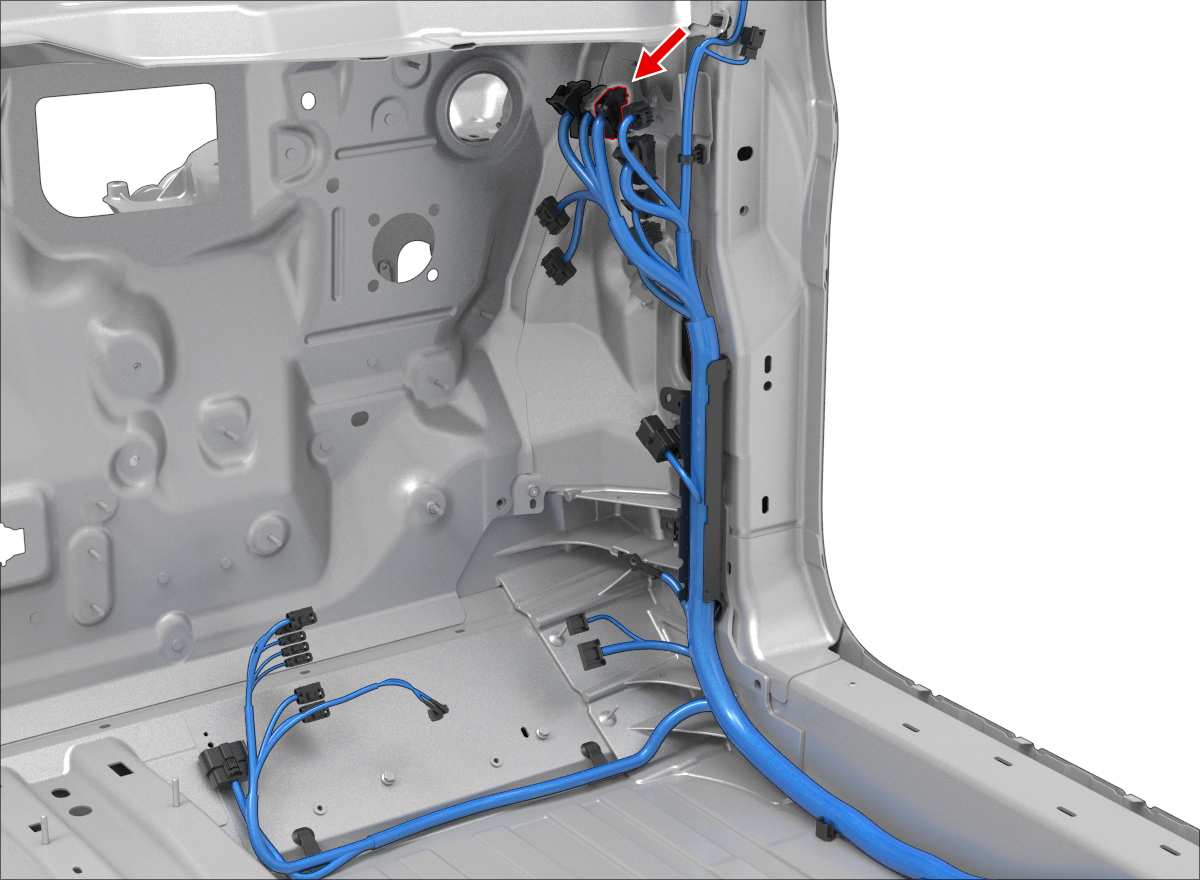

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X457 | 3 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X290 | 1 | ||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X980M | 3 | ||
