X062

Tesla Part Number

1506905-00-A

Connector

SUMITOMO 6098-8944

Color

WH

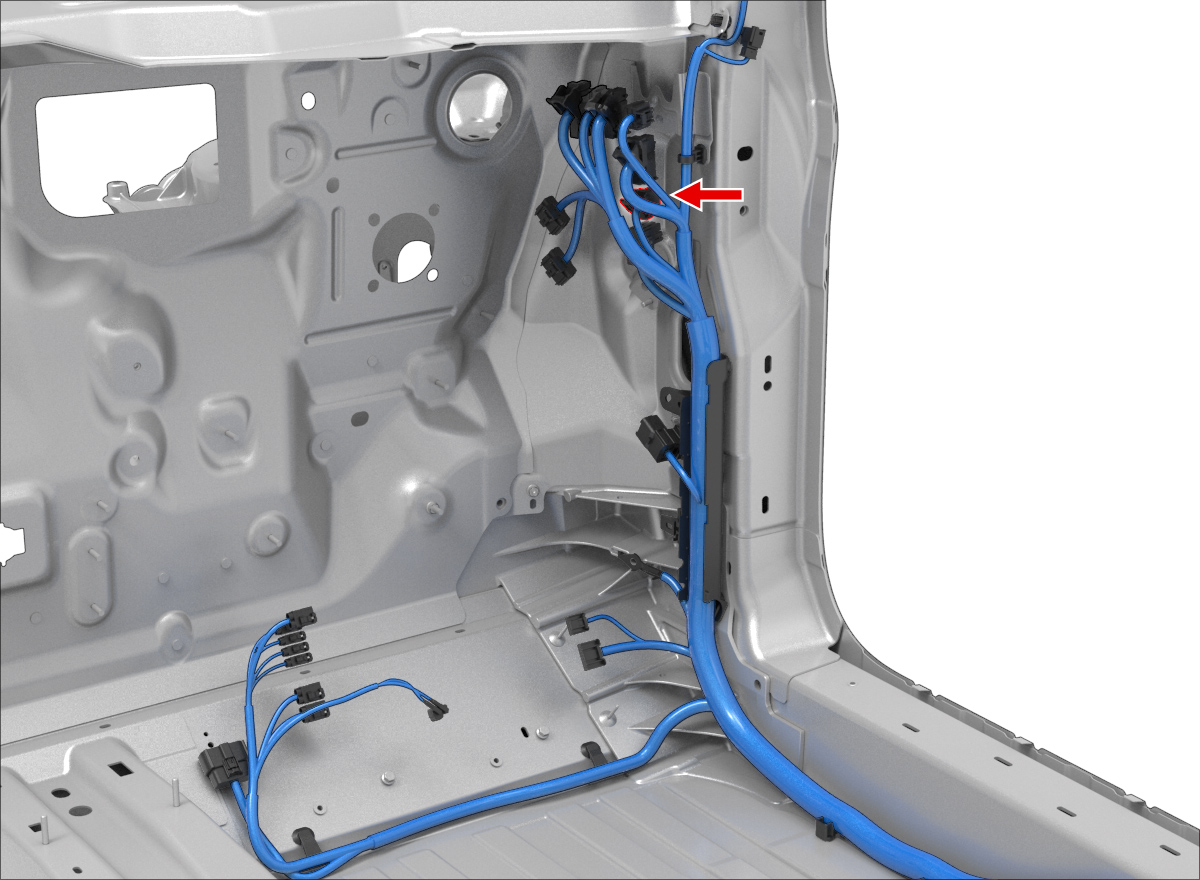

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X980M	7
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X980M	8
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X980M	6
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X980M	4
6	unused
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X792	8
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X792	19
11	unused
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X911F	5
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X911F	7
16	unused
17	unused
18	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X954M	7
19	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X954M	15
20	unused
21	unused
22	unused
23	unused
