X087

Tesla Part Number

1015192-00-A

Connector

FEP 42122600

Color

BK

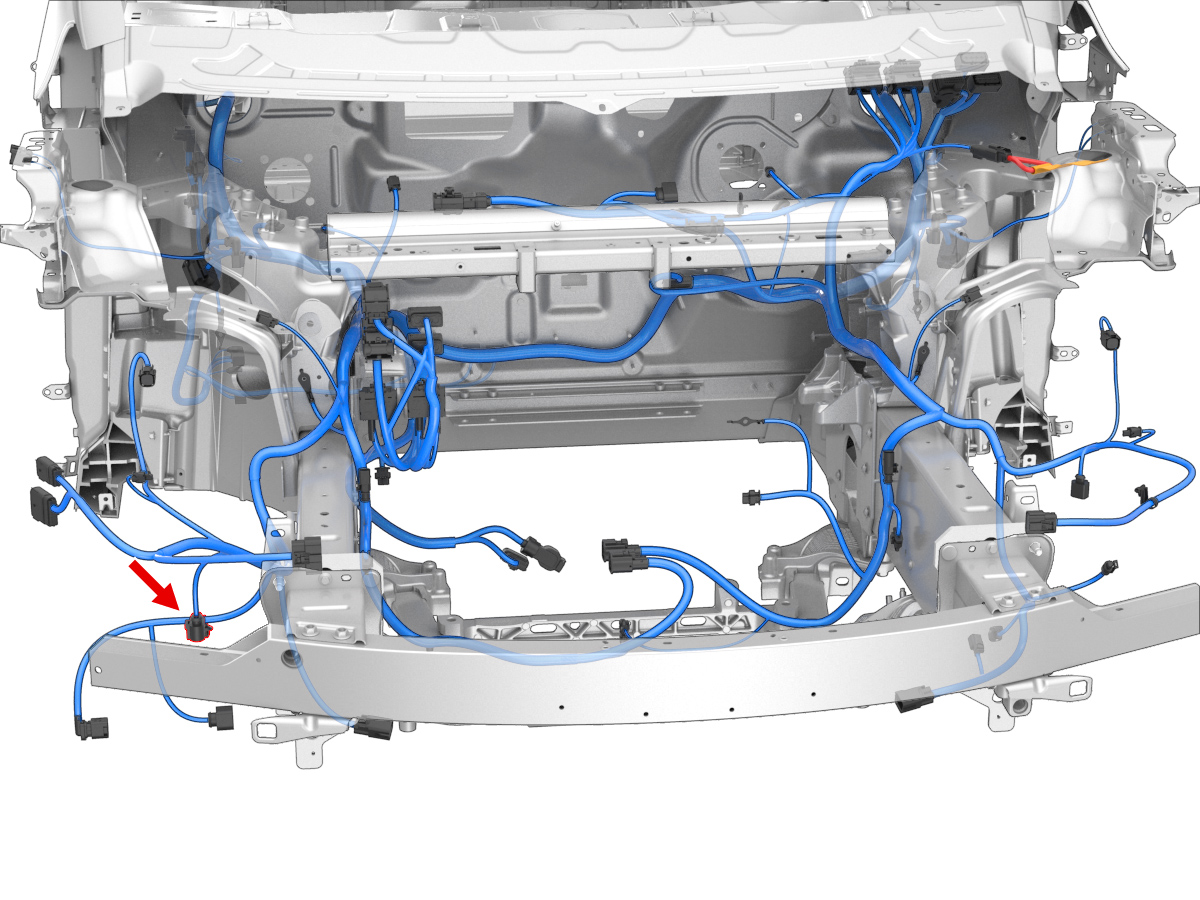

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	969005-2	1.6x0.6FS	RD	0.35	AMP	1394133-1	X066	18
2	AMP	969005-2	1.6x0.6FS	WH	0.35	AMP	1394133-1	X066	16
3	AMP	969005-2	1.6x0.6FS	GN	0.35	AMP	1394133-1	X066	17
4	AMP	969005-2	1.6x0.6FS	VT	0.35	AMP	1394133-1	X066	20
5	AMP	969005-2	1.6x0.6FS	GY	0.35	AMP	1394133-1	X066	6
6	AMP	969005-2	1.6x0.6FS	YE	0.35	AMP	1394133-1	X066	5
7	AMP	969005-2	1.6x0.6FS	BK	0.35	AMP	1394133-1	X065	16
8	AMP	969005-2	1.6x0.6FS	BU	0.35	AMP	1394133-1	X066	19
9	AMP	969005-2	1.6x0.6FS	VT	0.35	AMP	1394133-1	X065	17
10	AMP	969005-2	1.6x0.6FS	RD	0.35	AMP	1394133-1	X065	12
