X1000

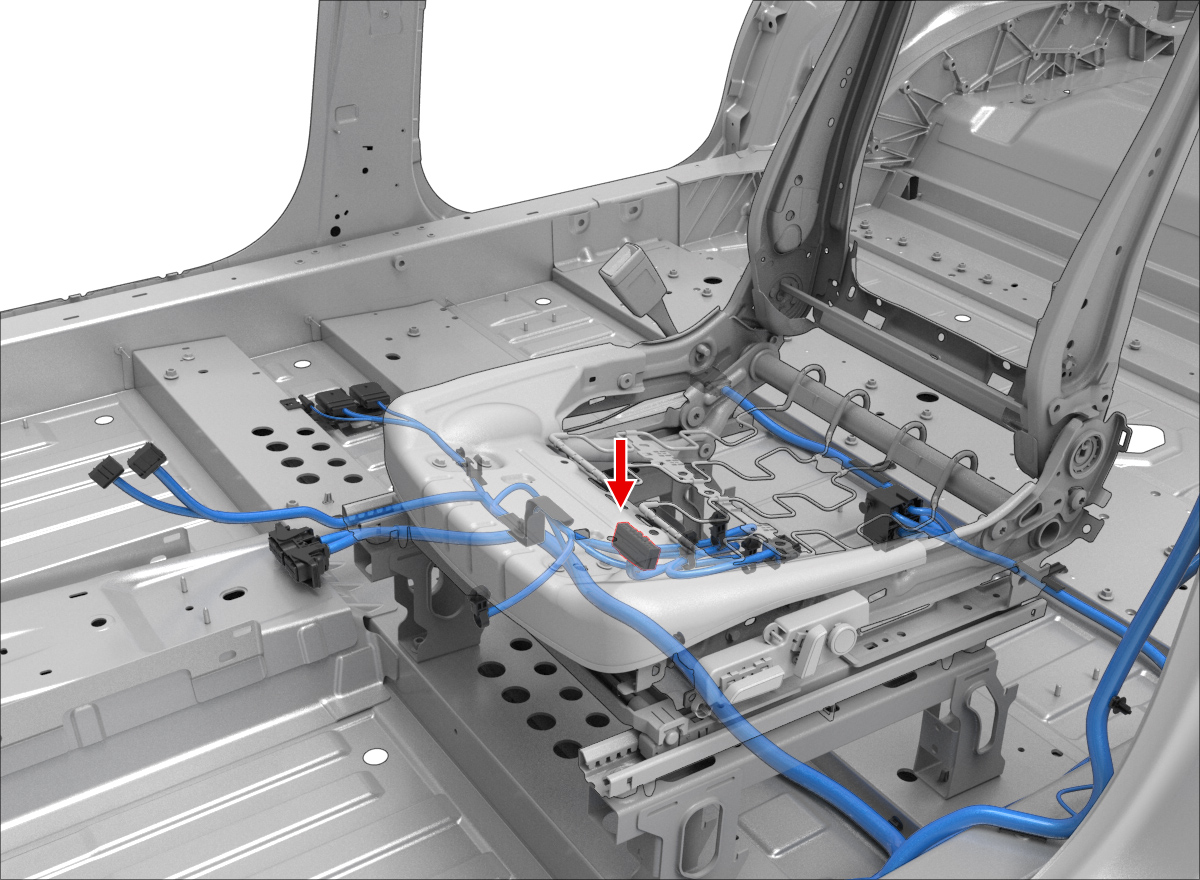

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2109006-1 | 1.5x0.64F | GN | 0.35 | X200 | 4 | ||
| 2 | AMP | 2109006-1 | 1.5x0.64F | GY | 0.35 | X200 | 3 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | AMP | 1241406-1 | 6.3x0.8F | YE | 3.00 | X034 | 3 | ||
| 7 | AMP | 1241406-1 | 6.3x0.8F | BK | 3.00 | G200 | 1 | ||
| 8 | AMP | 2109006-1 | 1.5x0.64F | BN/WH | 0.35 | X038A | 15 | ||
| 9 | AMP | 2109006-1 | 1.5x0.64F | BN | 0.35 | X038A | 2 | ||
| 10 | unused | ||||||||
| 11 | AMP | 2109006-1 | 1.5x0.64F | BN | 0.35 | X200 | 8 | ||
| 12 | AMP | 2109006-1 | 1.5x0.64F | YE | 0.35 | X200 | 7 | ||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | unused | ||||||||
