X1013

Tesla Part Number
1075477-00-B
Connector
DELPHI 13597381
Color
BN

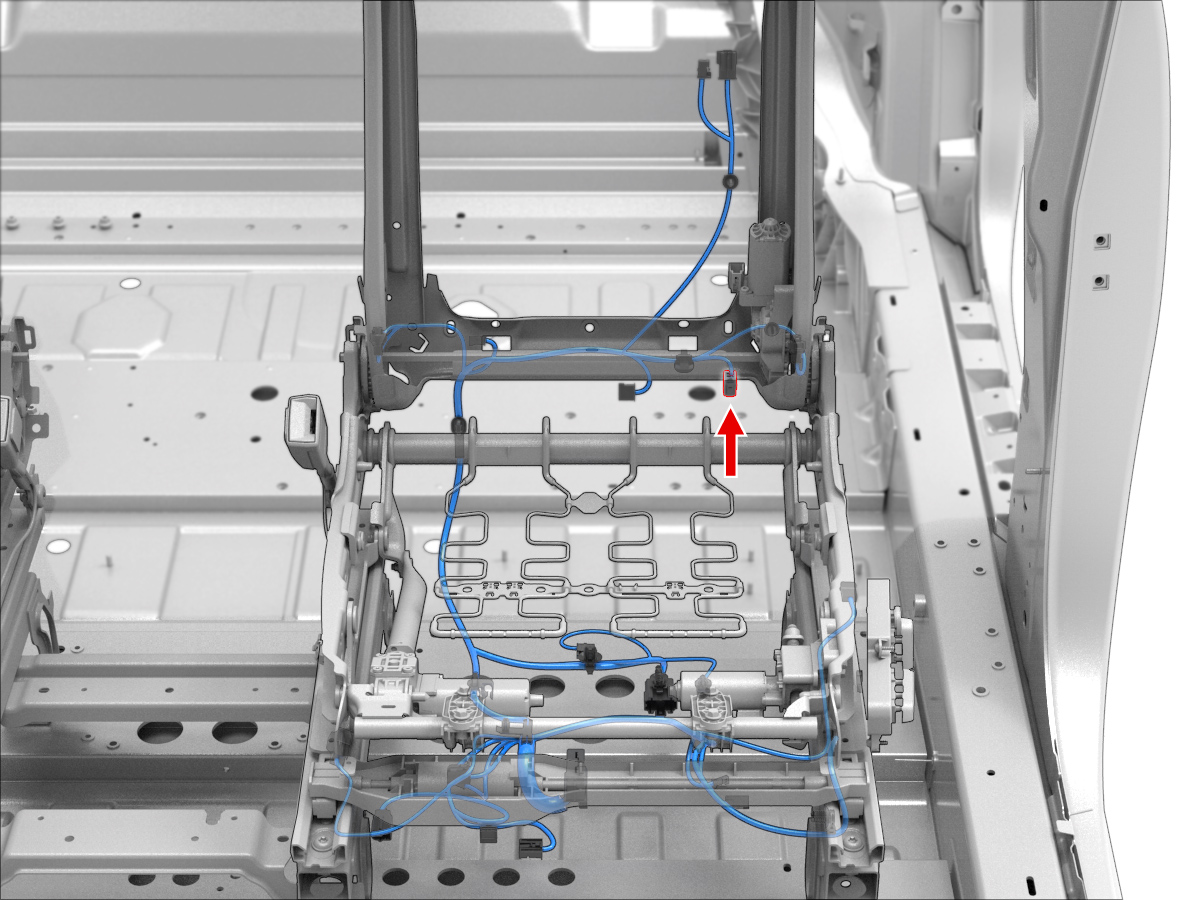

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP968074-22.8x0.6FYE0.75X100249
2AMP5-928999-10.63x0.63FGY0.35X100244
3AMP968074-22.8x0.6FWH0.75X100250
4AMP5-928999-10.63x0.63FBN0.35X100245
