X1131

Tesla Part Number
1502181-00-A
Connector
DELPHI 12052856
Color
BK

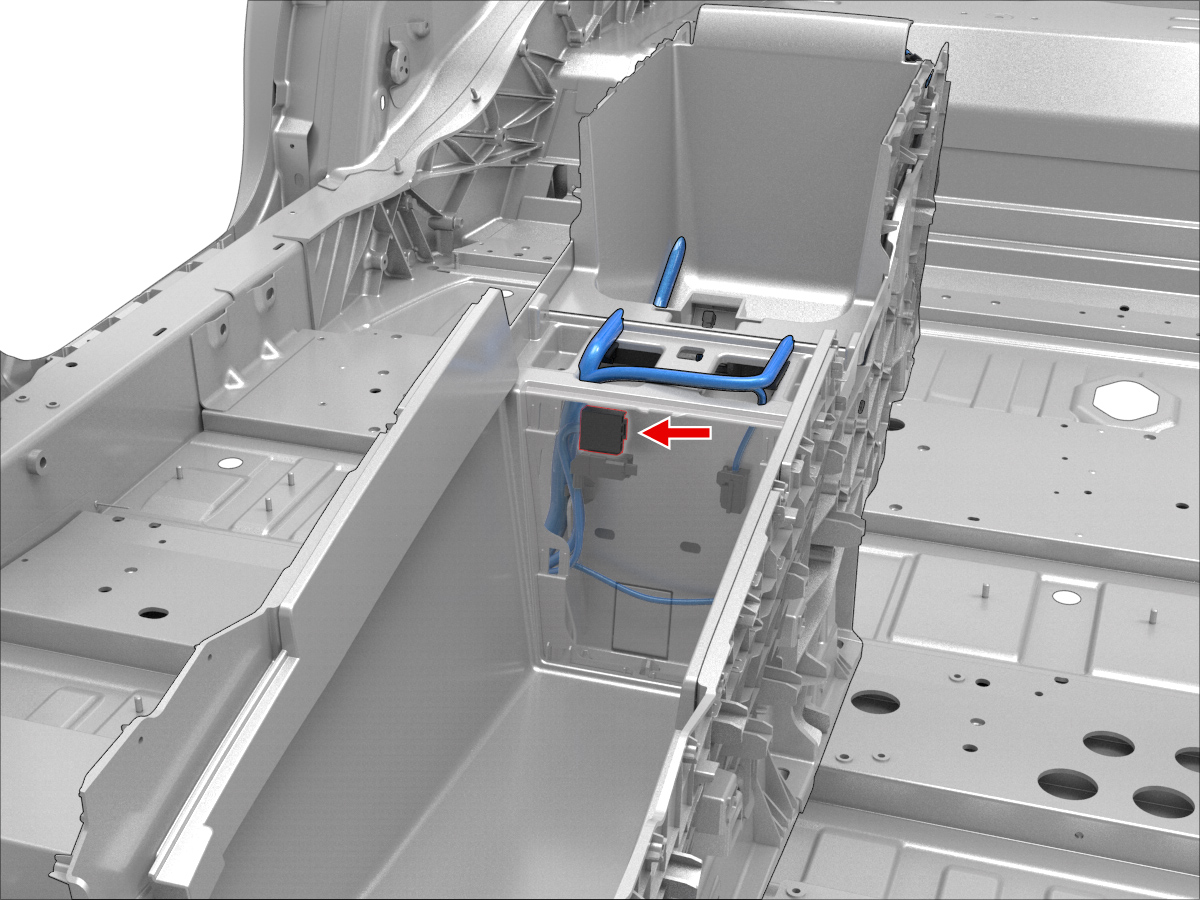

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
ADELPHI120662142.8x0.8FBK2.00X982M11
BDELPHI120662142.8x0.8FBN2.00X1132A
CDELPHI120662142.8x0.8FYE2.00X1132D
DDELPHI120662142.8x0.8FVT2.00X982M10
