X1133

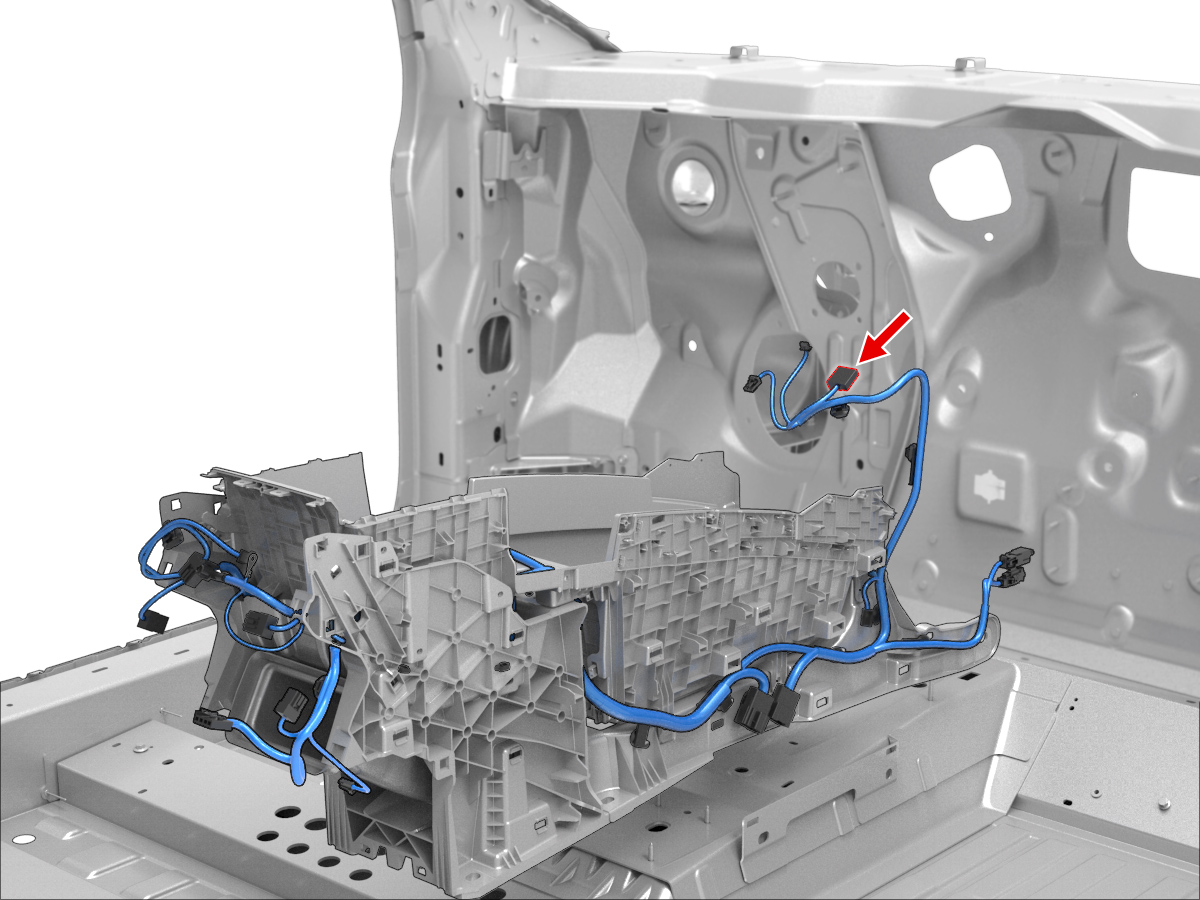

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12052217 | 2.8x0.8F | GY | 0.50 | X982M | 13 | ||
| B | unused | ||||||||
| C | DELPHI | 12066214 | 2.8x0.8F | BN | 2.00 | X1132 | B | ||
| D | DELPHI | 12066214 | 2.8x0.8F | YE | 2.00 | X1132 | C | ||
