X139

Tesla Part Number
1496688-01-A
Connector
DELPHI 35126370
Color
BK

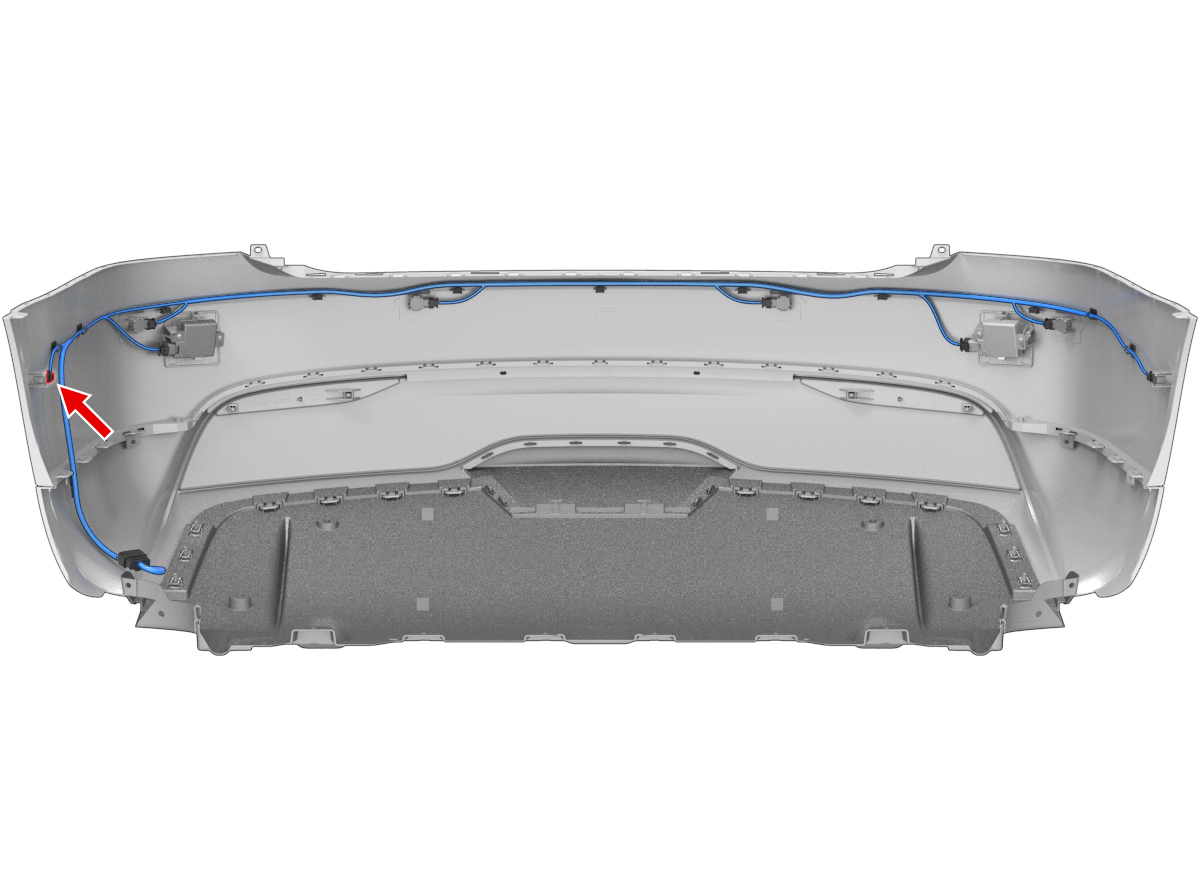

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP7-1452665-11.2x0.6FSRD0.35AMP967067-2
2AMP7-1452665-11.2x0.6FSBU0.35AMP967067-2X909F17
3AMP7-1452665-11.2x0.6FSBN0.35AMP967067-2
