X1400

Tesla Part Number

1097405-00-A

Connector

AMP 2177588-1

Color

BK

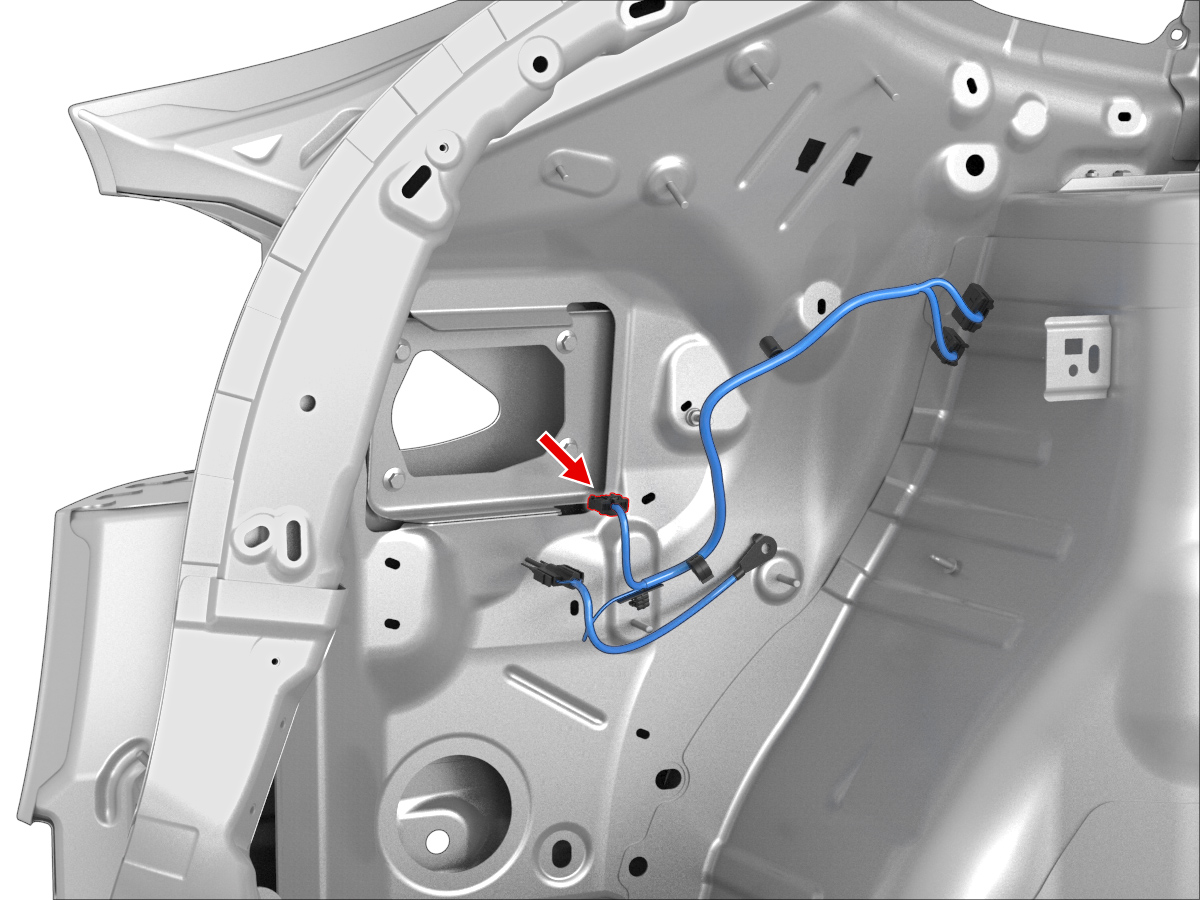

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X1496	6
2	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X1496	7
3	AMP	2-1703930-1	0.50x0.40F	RD	0.35			X1495	1
4	AMP	2-1703930-1	0.50x0.40F	WH	0.35			X1495	20
5	unused
6	unused
7	unused
8	AMP	2-1703930-1	0.50x0.40F	GY	0.35			X1495	12
9	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X1495	24
10	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X1496	16
11	AMP	2-1703930-1	0.50x0.40F	WH	0.35			X1496	15
12	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X1496	3
13	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X1496	12
14	unused
15	AMP	2-1703930-1	0.50x0.40F	GY	0.35			X1496	5
16	AMP	2-1703930-1	0.50x0.40F	BU	0.35			X1495	22
17	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X1496	1
18	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X1495	5
19	AMP	2-1703930-1	0.50x0.40F	BU	0.35			X1496	8
20	unused
