X1401

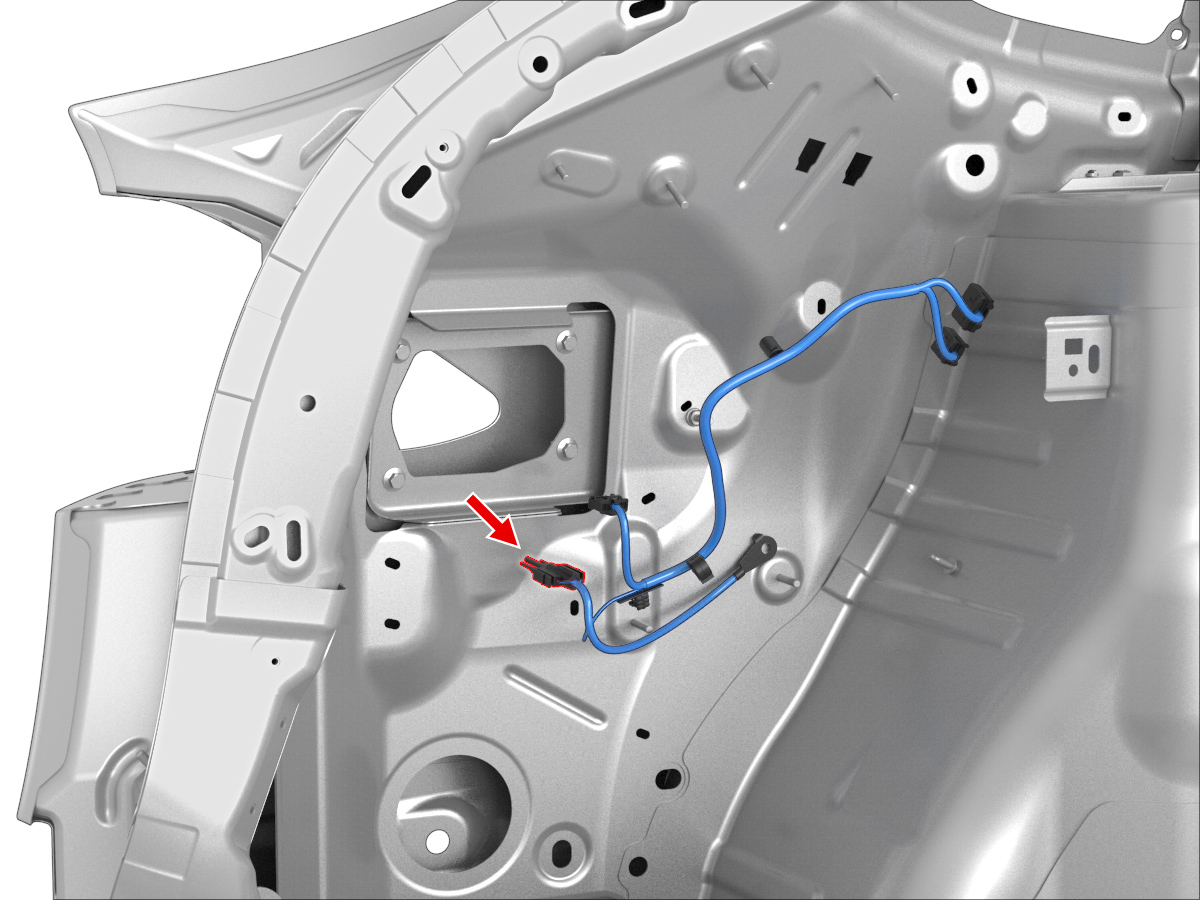

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CATHAY | 1003900-20-B | SPECIAL | VT | 0.50 | PIA | PIA-SEAL | X1495 | 16 |
| 2 | CATHAY | 1003903-20-B | SPECIAL | GN | 8.0 | PIA | PIA-SEAL | G420 | 1 |
| 3 | CATHAY | 1003900-20-B | SPECIAL | OG | 0.50 | PIA | PIA-SEAL | X1495 | 4 |
