X1495

Tesla Part Number

1088237-00-A

Connector

AMP 1379668-5

Color

NA

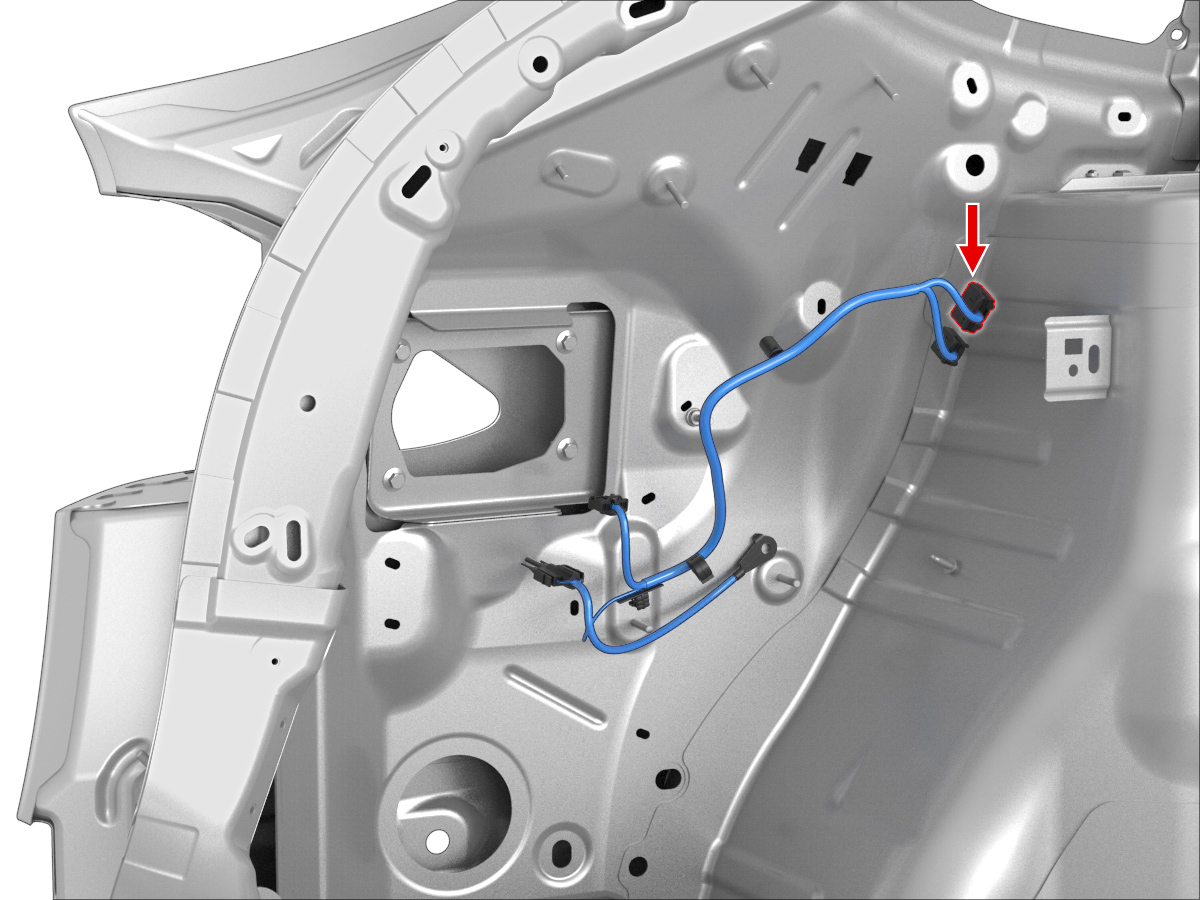

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				RD	0.35			X1400	3
2	unused
3	unused
4				OG	0.50			X1401	3
5				GN	0.35			X1400	18
6	unused
7	unused
8	unused
9	unused
10	unused
11	unused
12				GY	0.35			X1400	8
13	unused
14	unused
15	unused
16				VT	0.50			X1401	1
17	unused
18	unused
19	unused
20				WH	0.35			X1400	4
21	unused
22				BU	0.35			X1400	16
23	unused
24				VT	0.35			X1400	9
