X150

Tesla Part Number
1037271-00-A
Connector
BOSCH 1928405762
Color
BK

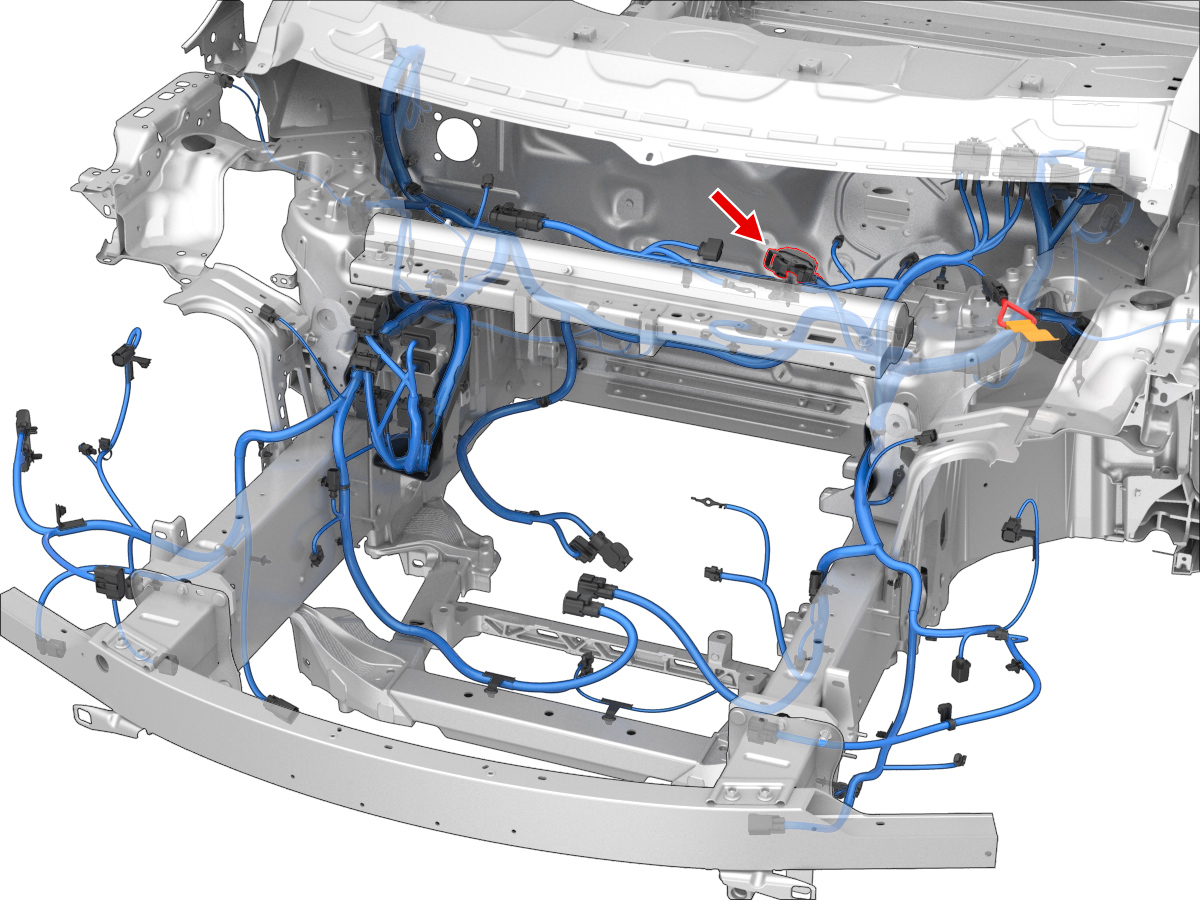

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BOSCH19284988074.8x0.8FSRD4.00BOSCH1928301086X0121
2BOSCH19284987051.5x0.6FSWH0.50BOSCH1928301118X1582
3unused
4unused
5unused
6unused
7unused
8BOSCH19284987051.5x0.6FSGY0.50BOSCH1928301118X1584
9BOSCH19284988074.8x0.8FSBK4.00BOSCH1928301086G1506
10BOSCH19284987051.5x0.6FSYE0.35BOSCH1928301118X01133
11unused
12unused
13unused
14unused
15unused
16BOSCH19284987051.5x0.6FSGN0.35BOSCH1928301118
17unused
18BOSCH19284987051.5x0.6FSYE/WH0.35BOSCH1928301118X01134
19unused
20BOSCH19284987051.5x0.6FSYE0.35BOSCH1928301118X010G3
21unused
22BOSCH19284987051.5x0.6FSTN0.50BOSCH1928301118X1581
23BOSCH19284987051.5x0.6FSBU0.50BOSCH1928301118X1583
24unused
25BOSCH19284987051.5x0.6FSGN/WH0.35BOSCH1928301118
26unused
