X151

Tesla Part Number
1038302-00-A
Connector
BOSCH 1928405654
Color
BK

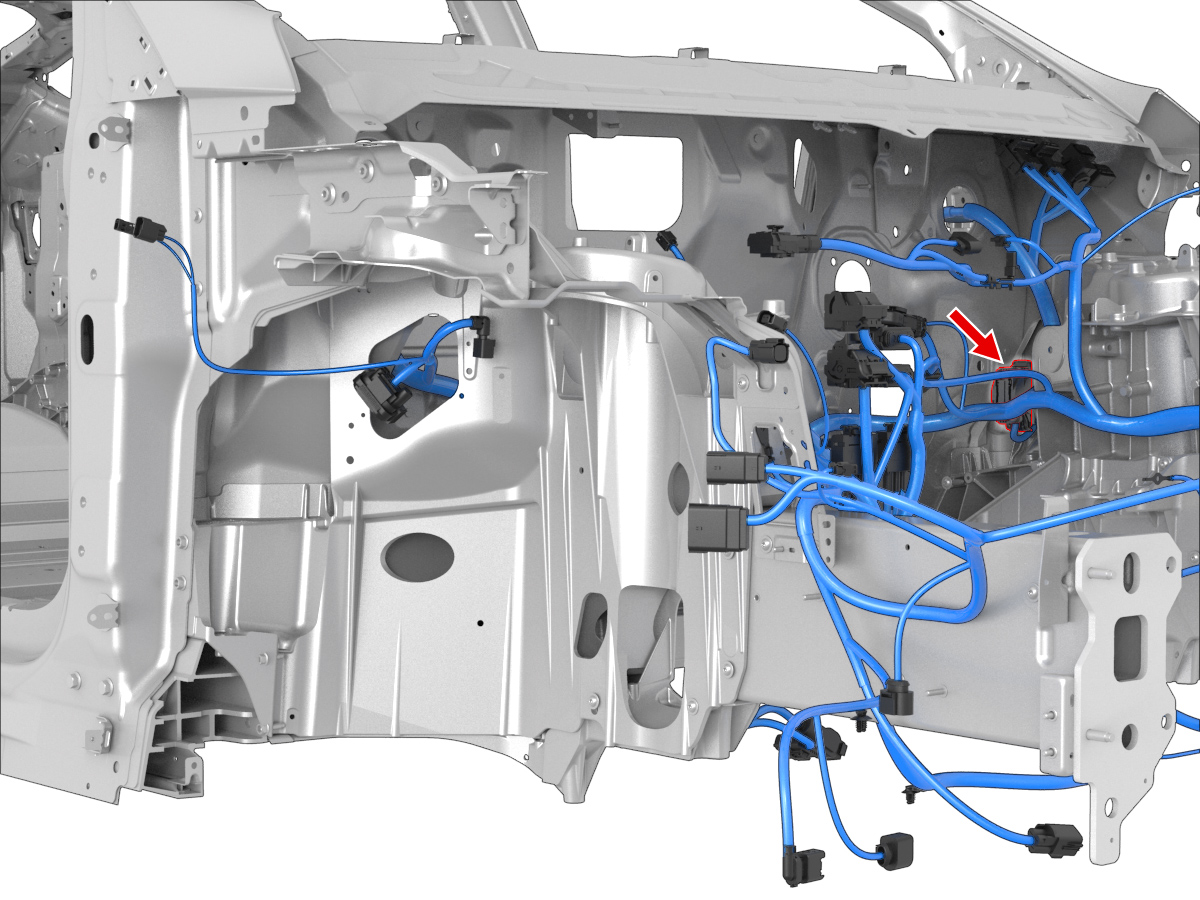

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BOSCH19284988074.8x0.8FSRD4BOSCH1928301086X0223
2unused
3unused
4BOSCH19284987051.5x0.6FSWH0.50BOSCH1928301118X1552
5unused
6unused
7unused
8BOSCH19284987051.5x0.6FSVT0.50BOSCH1928301118X1542
9unused
10unused
11unused
12unused
13BOSCH19284988074.8x0.8FSBK4BOSCH1928301086G1606
14BOSCH19284987051.5x0.6FSYE0.35BOSCH1928301118X025E1
15unused
16BOSCH19284987051.5x0.6FSBN0.50BOSCH1928301118X1551
17BOSCH19284987051.5x0.6FSBU0.50BOSCH1928301118X915M9
18BOSCH19284987051.5x0.6FSGY0.50BOSCH1928301118X914M7
19BOSCH19284987051.5x0.6FSRD0.50BOSCH1928301118X1541
20BOSCH19284987051.5x0.6FSGN0.35BOSCH1928301118
21unused
22unused
23unused
24unused
25BOSCH19284988062.8x0.8FSVT2.00BOSCH1928301206X025B1
26BOSCH19284987051.5x0.6FSYE/WH0.35BOSCH1928301118X025F1
27unused
28BOSCH19284987051.5x0.6FSGY0.35BOSCH1928301118X025E5
29BOSCH19284987051.5x0.6FSYE0.50BOSCH1928301118X915M10
30unused
31BOSCH19284987051.5x0.6FSBU0.50BOSCH1928301118X914M6
32unused
33BOSCH19284987051.5x0.6FSGN/WH0.35BOSCH1928301118
34unused
35unused
36unused
37unused
38BOSCH19284988062.8x0.8FSBK2.00BOSCH1928301206G16012
