X158

Tesla Part Number
1118708-00-A
Connector
BOSCH 1928405525
Color
BK

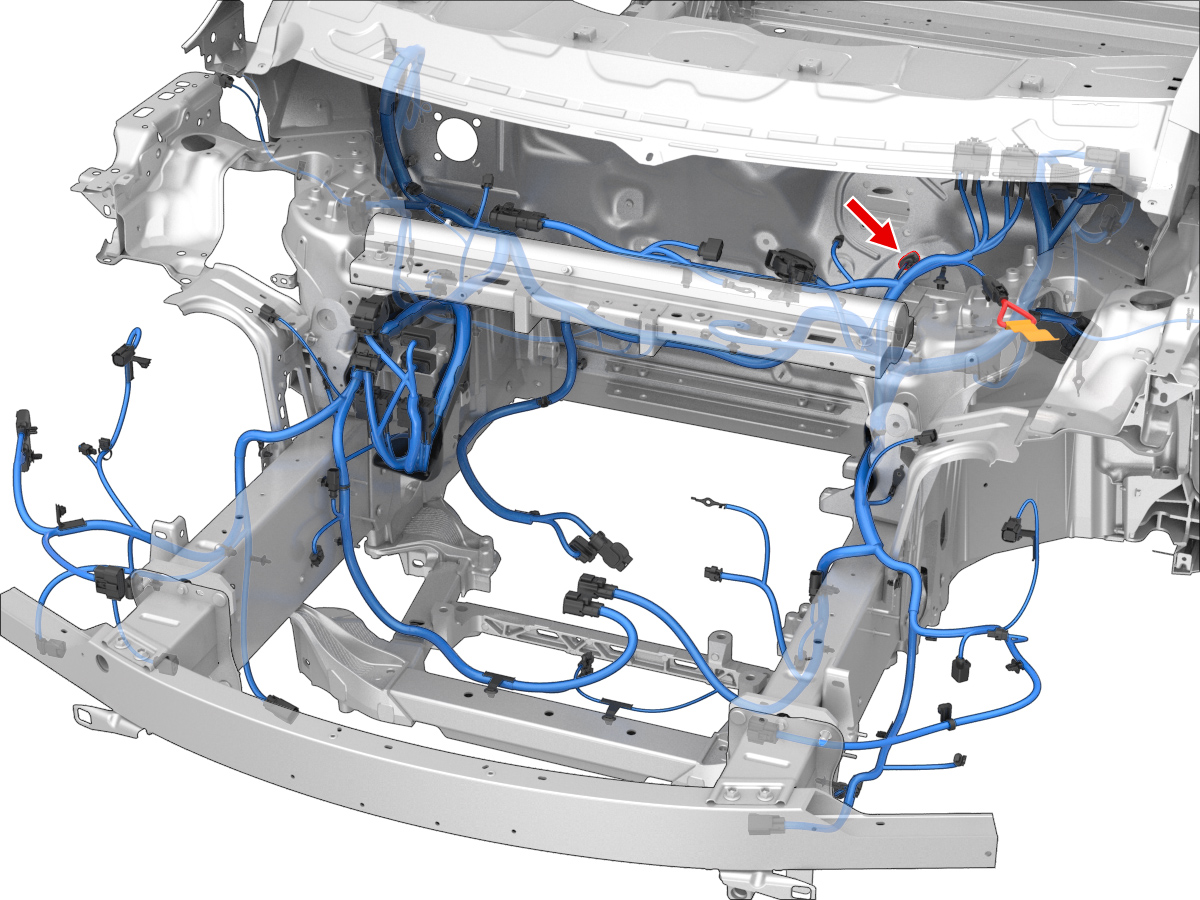

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BOSCH19284980562.8x0.8FSTN0.50BOSCH1928300599X15022
2BOSCH19284980562.8x0.8FSWH0.50BOSCH1928300599X1502
3BOSCH19284980562.8x0.8FSBU0.50BOSCH1928300599X15023
4BOSCH19284980562.8x0.8FSGY0.50BOSCH1928300599X1508
