X164

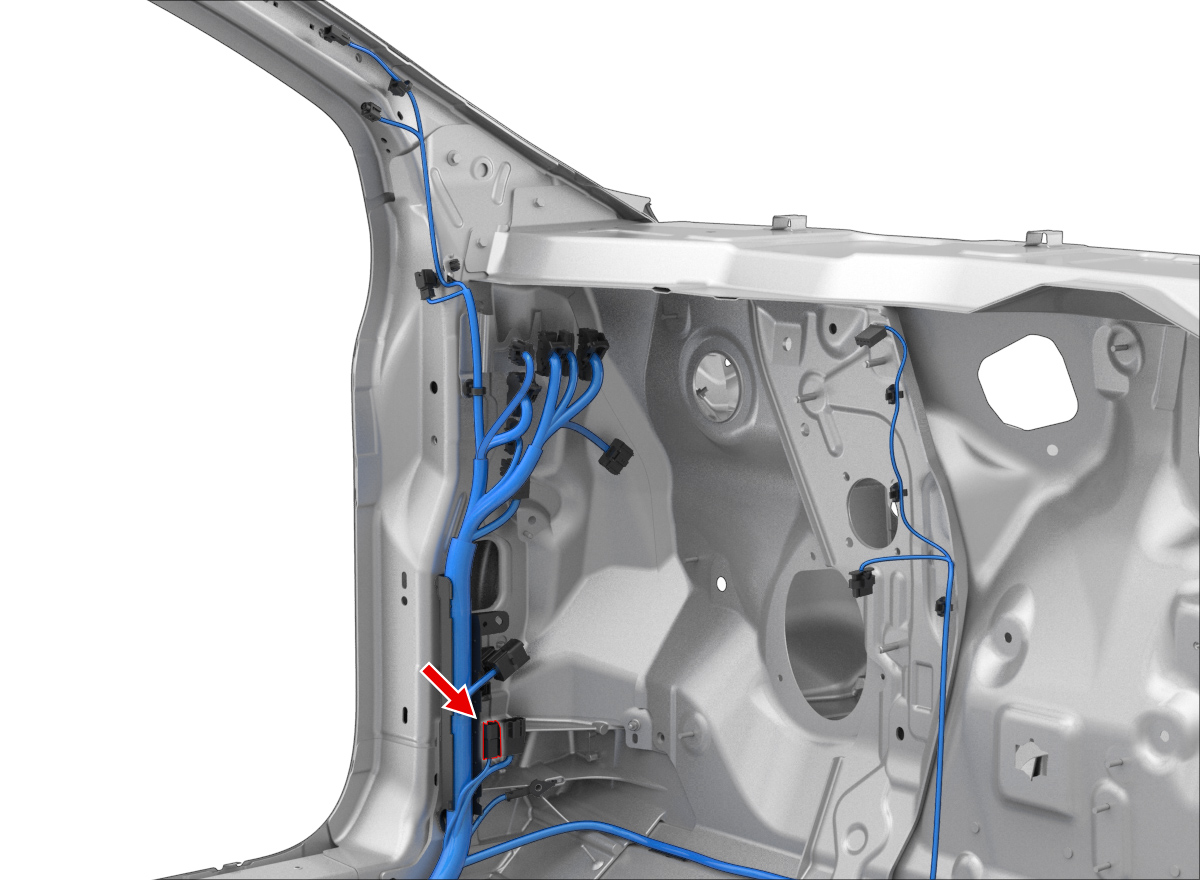

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4502 | 2.3x0.64M | BU | 1.50 | X901F | 1 | ||
| 2 | SUMITOMO | 8230-4502 | 2.3x0.64M | BK | 1.50 | G200 | 1 | ||
| 3 | SUMITOMO | 8230-4492 | 2.3x0.64M | YE | 0.50 | X032 | 2 | ||
| 4 | SUMITOMO | 8230-4502 | 2.3x0.64M | RD | 1.50 | X030B | 1 |
