X171

Tesla Part Number

1043580-00-A

Connector

SUMITOMO 6098-6203

Color

WH

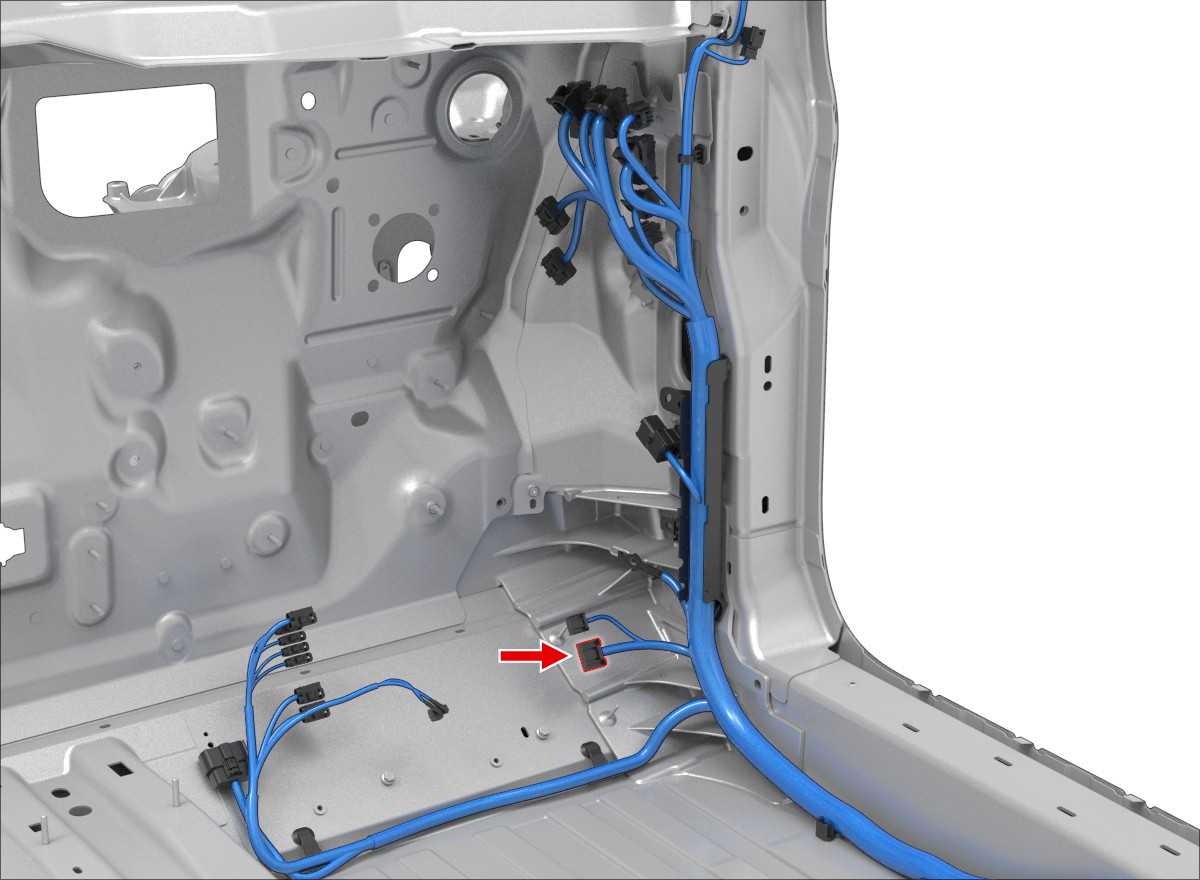

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X996F	13
2	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X996F	14
3	SUMITOMO	8240-0213	1.5x0.64F	VT/WH	0.75			X923M	5
4	SUMITOMO	8240-0213	1.5x0.64F	BU/WH	0.75			X923M	2
5	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X996F	11
6	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X996F	12
7	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X996F	6
8	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X996F	5
9	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X051	11
10	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X051	12
11	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X915F	16
12	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X915F	17
13	SUMITOMO	8240-0213	1.5x0.64F	WH	0.75			X996F	2
14	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X996F	1
15	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X941M	2
16	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X941M	1
