X174

Tesla Part Number

1660467-00-A

Connector

HIROSE GT25-16DS-HU

Color

BK

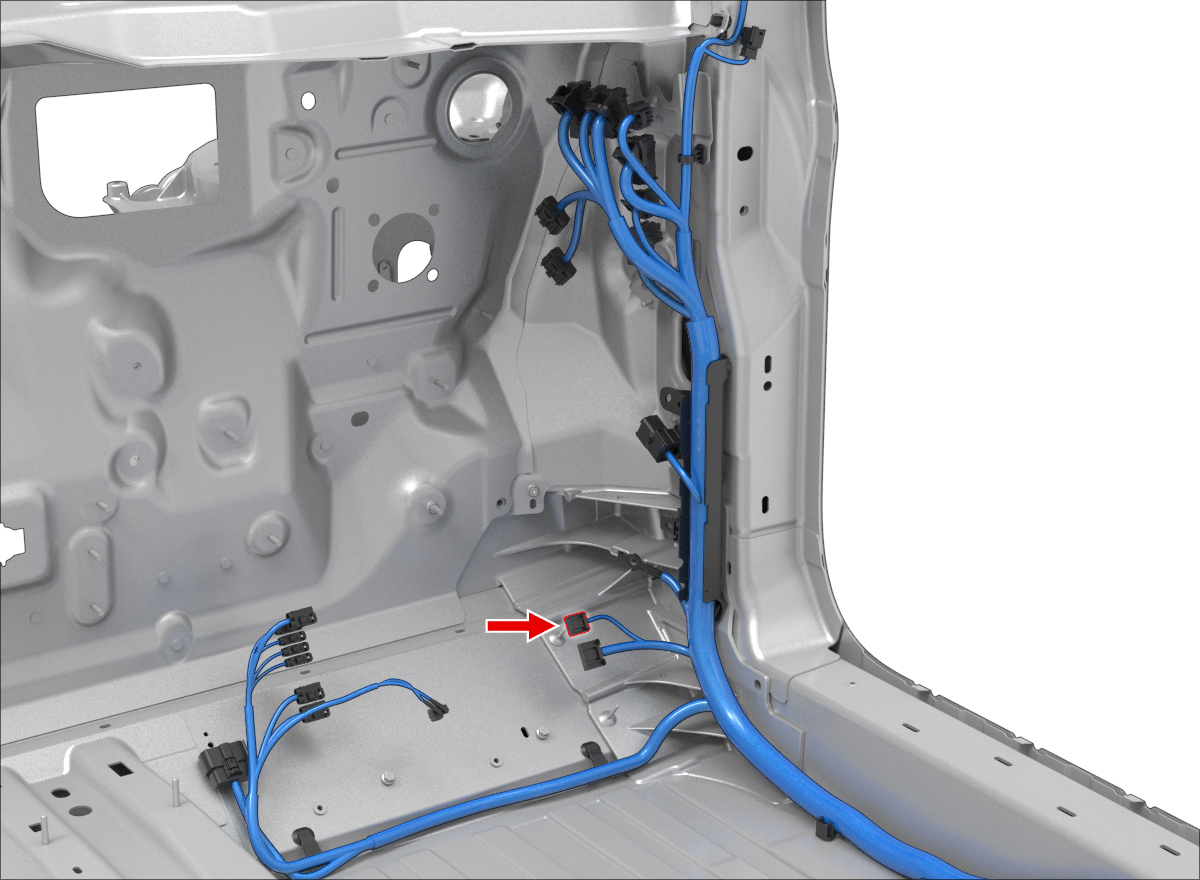

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	HIROSE	GT25H-2024SCF	0.64F	WH	0.35			X911F	2
2	HIROSE	GT25H-2024SCF	0.64F	RD	0.35			X911F	1
3	HIROSE	GT25H-2024SCF	0.64F	RD	0.50			X941M	7
4	HIROSE	GT25H-2024SCF	0.64F	VT	0.50			X941M	6
5	HIROSE	GT25H-2024SCF	0.64F	YE/WH	0.35			X052	3
6	HIROSE	GT25H-2024SCF	0.64F	YE	0.35			X052	18
7	HIROSE	GT25H-2024SCF	0.64F	VT	0.50			X996F	3
8	HIROSE	GT25H-2024SCF	0.64F	RD	0.50			X996F	4
9	HIROSE	GT25H-2024SCF	0.64F	YE	0.50			X051	13
10	HIROSE	GT25H-2024SCF	0.64F	BN	0.50			X051	14
11	HIROSE	GT25H-2024SCF	0.64F	BU	0.35			X954M	4
12	HIROSE	GT25H-2024SCF	0.64F	GN	0.35			X954M	5
13	HIROSE	GT25H-2024SCF	0.64F	BU	0.50			X051	30
14	HIROSE	GT25H-2024SCF	0.64F	BK	0.50			X051	29
15	HIROSE	GT25H-2024SCF	0.64F	GN	0.35			X996F	10
16	HIROSE	GT25H-2024SCF	0.64F	BU	0.35			X996F	9
