X177

Tesla Part Number
1582608-00-A
Connector
AMPHENOL 10142348-004LF
Color
BK

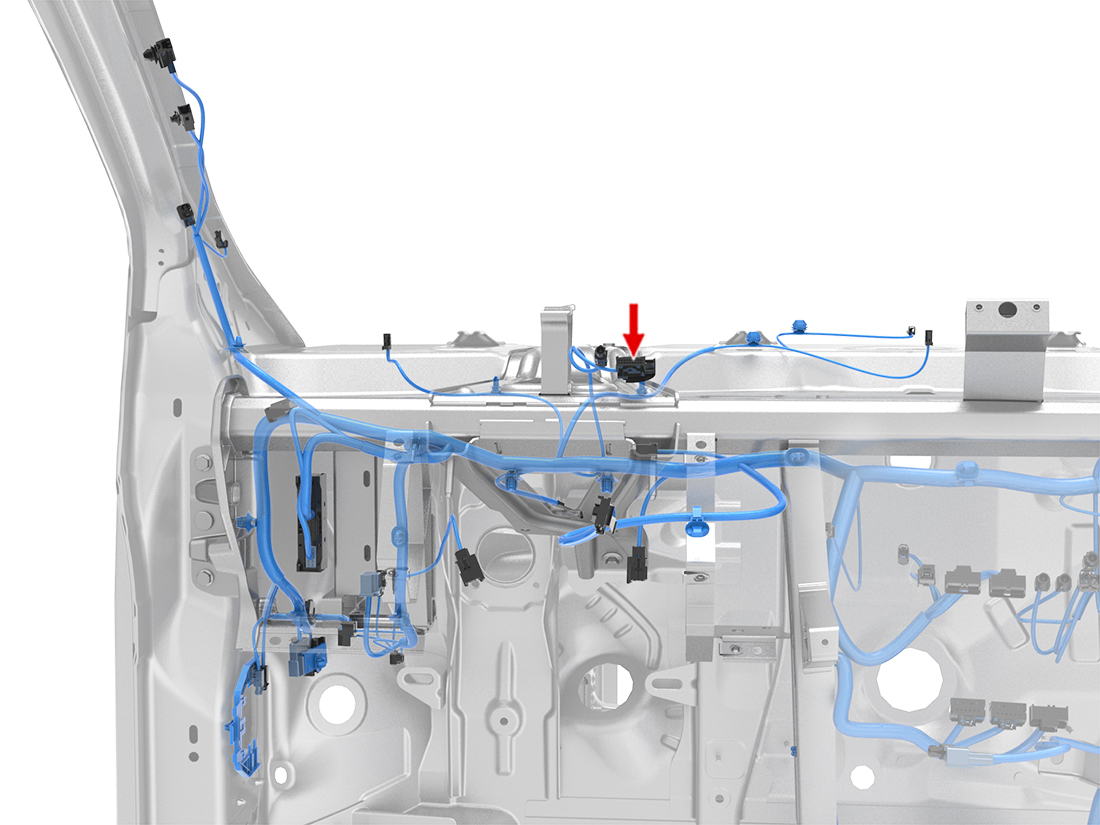

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10141272-111 LF0.50FYE/WH0.35X5962
2AMPHENOL10141272-111 LF0.50FGN0.35X5961
3AMPHENOL10141272-111 LF0.50FYE0.35X5966
4AMPHENOL10141272-111 LF0.50FGN/WH0.35X5965
