X196

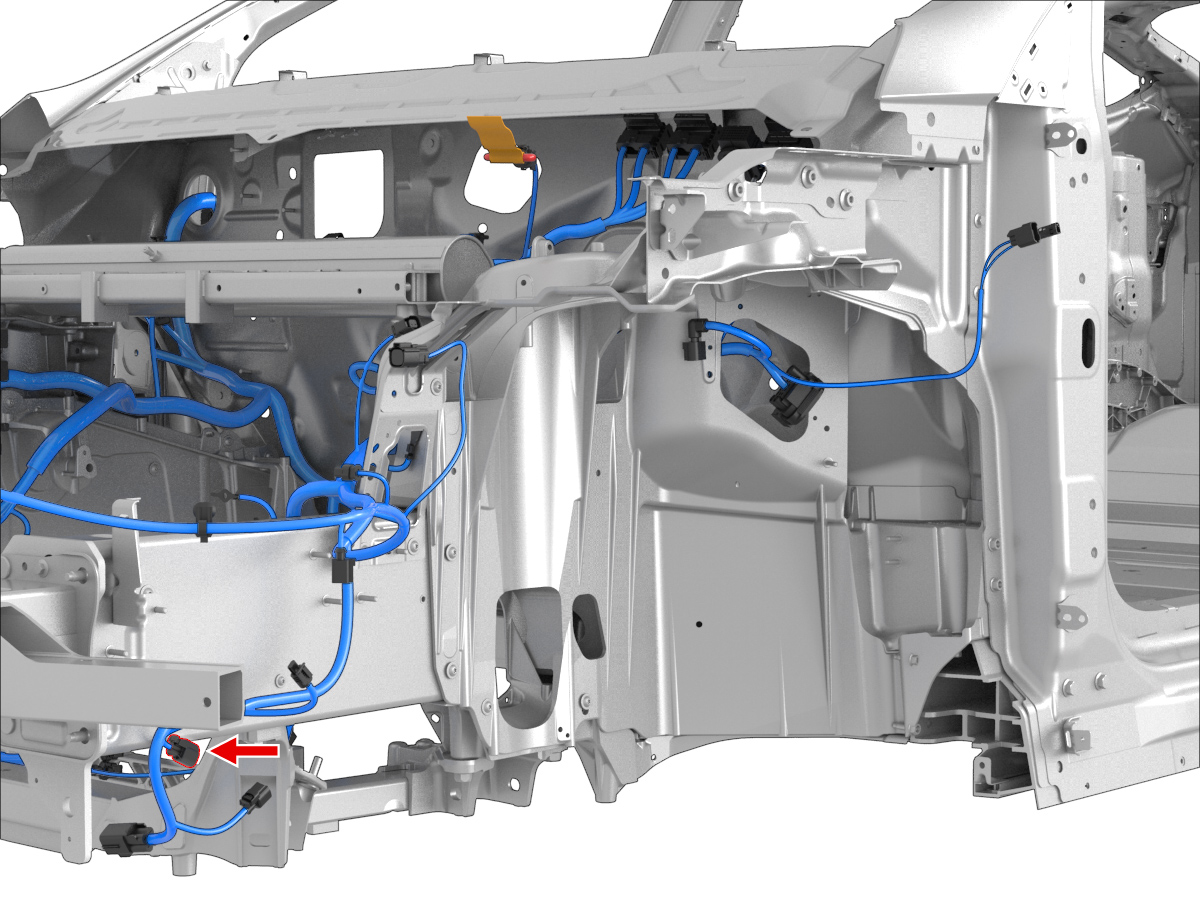

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 34083-2001 | 1.5X0.6FS | GY | 1.00 | YAZAKI | 7158-3031-90 | X010 | B5 |
| 2 | MOLEX | 34083-2001 | 1.5X0.6FS | BK | 1.00 | YAZAKI | 7158-3031-90 | G150 | 10 |
