X200

Tesla Part Number

1475383-00-A

Connector

BOSCH 1928406052

Color

BK

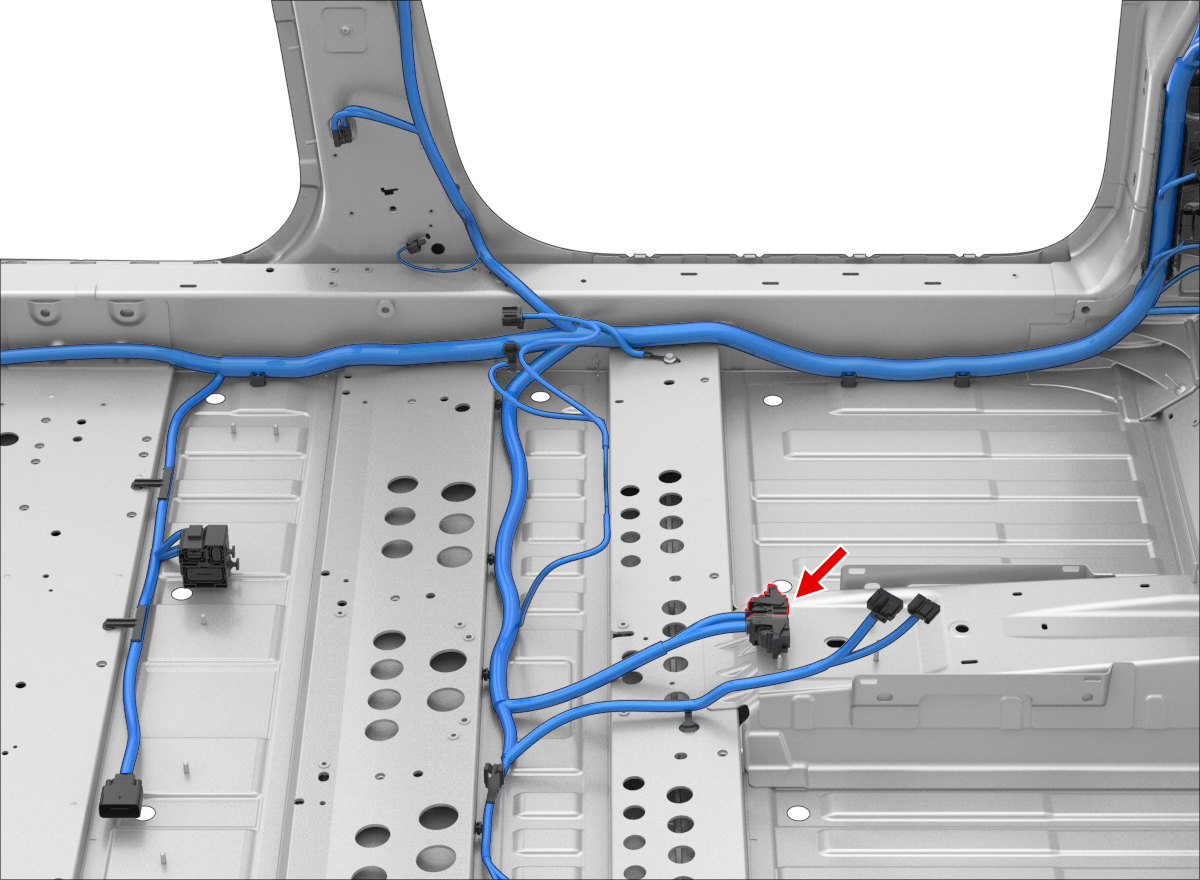

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X988M	2
2	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X988M	12
3	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X1000	2
4	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X1000	1
5	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X947M	15
6	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X947M	16
7	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X1000	12
8	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X1000	11
9	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X947M	9
10	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X947M	10
11	unused
12	unused
13	unused
14	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X947M	11
15	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X947M	12
16	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X947M	2
17	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X947M	1
18	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X947M	13
19	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X947M	14
20	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X947M	4
21	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X947M	3
22	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X947M	17
23	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X947M	18
24	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X947M	8
25	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X947M	7
26	unused
27	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X913F	14
28	unused
29	unused
30	unused
31	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X910F	13
32	BOSCH	1928499468	0.50x0.40F	BU/WH	0.35	TESLA	MAT-110-130	X910F	14
33	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X997M	4
34	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X997M	3
35	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X913F	10
36	unused
37	unused
38	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X988M	13
39	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X988M	14
40	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X997M	15
41	unused
42	unused
43	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X996M	18
44	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X996M	17
45	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X031	30
46	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X031	45
47	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X031	13
48	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X031	14
49	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X031	12
50	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X031	11
51	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X032	16
52	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X032	17
