X2002

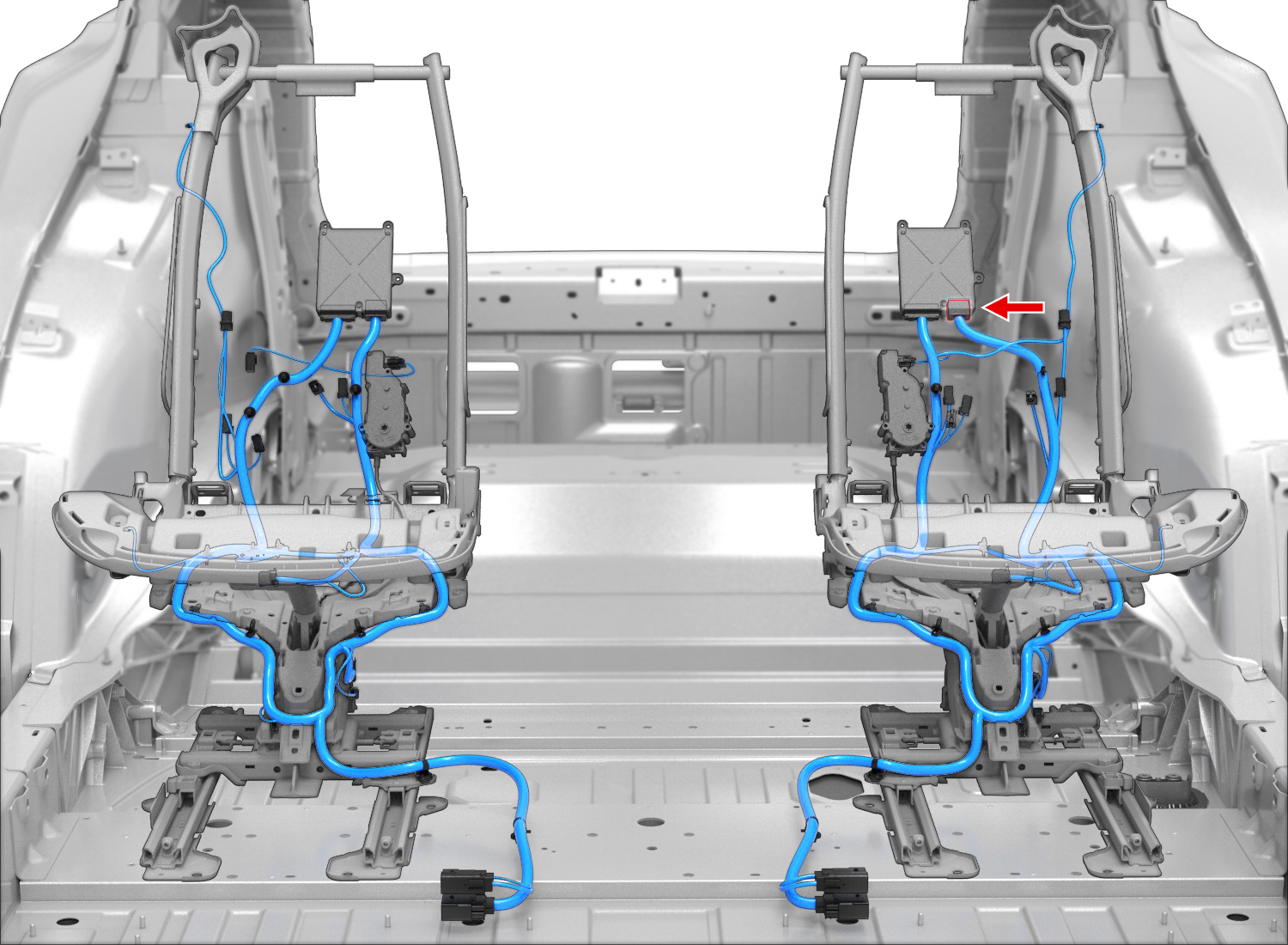

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3001 | 1.5x0.8F | RD | 2.00 | X2006 | 1 | ||
| 2 | MOLEX | 33012-3001 | 1.5x0.8F | VT | 2.00 | X2006 | 2 | ||
| 3 | MOLEX | 33012-3001 | 1.5x0.8F | TN | 2.00 | X2006 | 3 | ||
| 4 | MOLEX | 33012-3002 | 1.5x0.8F | BK | 0.75 | X935M | 5 | ||
| 5 | MOLEX | 33012-3001 | 1.5x0.8F | GY | 2.00 | X2007 | 3 | ||
| 6 | MOLEX | 33012-3001 | 1.5x0.8F | YE | 2.00 | X2007 | 1 | ||
| 7 | AMP | 1326030-7 | 2.8x0.8F | BK | 2.50 | ||||
| 8 | AMP | 1326030-6 | 2.8x0.8F | YE | 0.75 | ||||
| 9 | AMP | 1326030-6 | 2.8x0.8F | WH | 0.75 | X935M | 9 | ||
| 10 | AMP | 1326030-7 | 2.8x0.8F | GN | 2.50 | X935M | 1 |
