X2003

Tesla Part Number

1075258-00-A

Connector

AMP 1674312-2

Color

BK

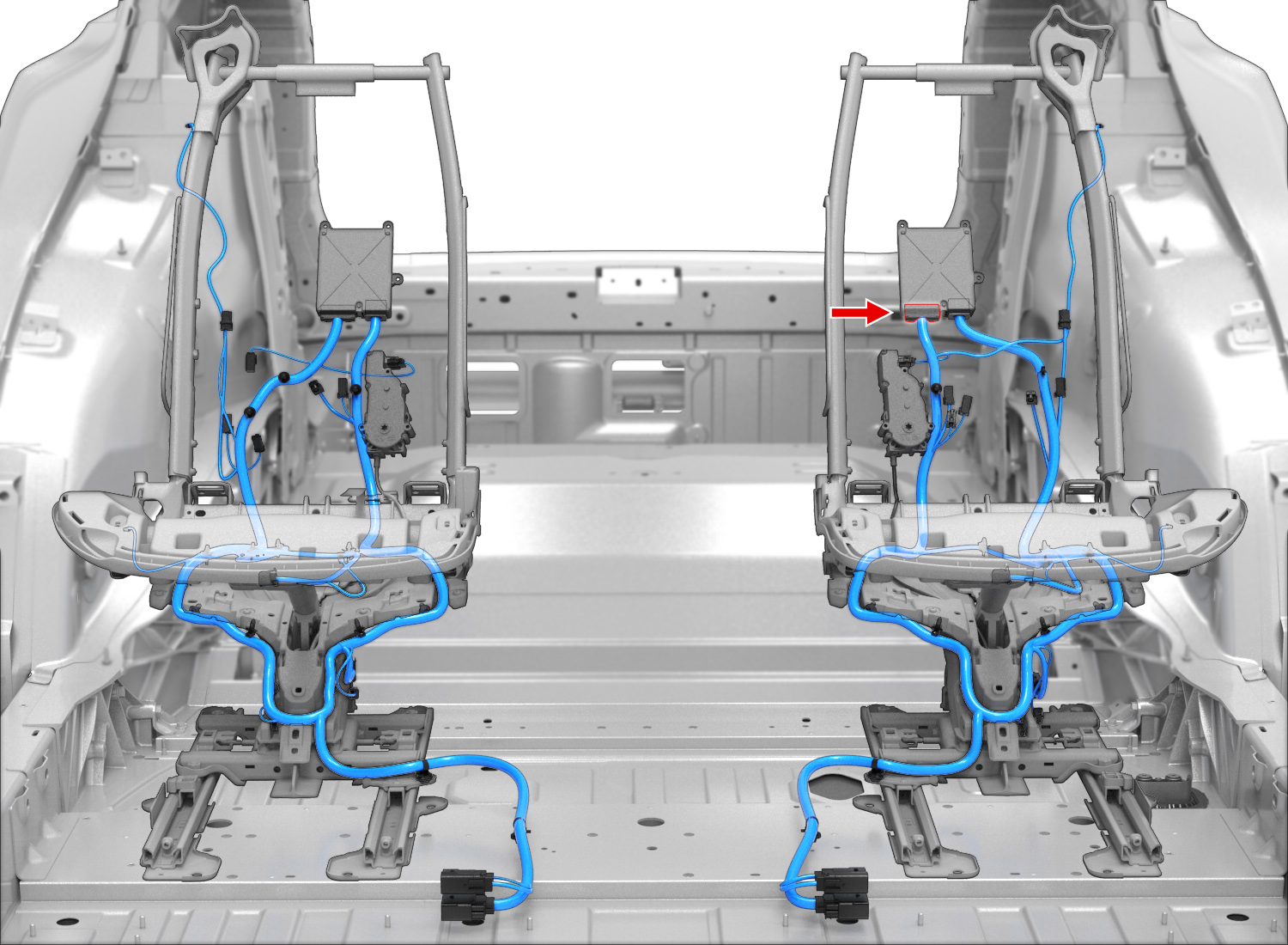

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1674311-1	0.64F	WH	0.75			X2015	2
2	AMP	1674311-1	0.64F	RD	0.75			X2015	1
3	unused
4	AMP	1674311-1	0.64F	GN	0.75			X935M	14
5	AMP	1674311-1	0.64F	TN	0.75			X935M	6
6	AMP	1674311-1	0.64F	BN	0.35			X935M	13
7	AMP	1674311-1	0.64F	GN	0.35			X2011	1
8	AMP	1674311-1	0.64F	GY	0.35			X935M	12
9	AMP	1674311-1	0.64F	VT	0.35			X935M	4
10	AMP	1674311-1	0.64F	RD	0.35			X935M	10
11	AMP	1674311-1	0.64F	YE	0.35			X2016	1
12	AMP	1674311-1	0.64F	GN	0.35			X2004	4
13	AMP	1674311-1	0.64F	RD	0.35			X2004	3
14	AMP	1674311-1	0.64F	BN	0.35
15	unused
16	unused
17	AMP	1674311-1	0.64F	VT/WH	0.35			X935M	2
18	AMP	1674311-1	0.64F	VT	0.35			X935M	3
19	unused
20	unused
21	AMP	1674311-1	0.64F	BN	0.35
22	AMP	1674311-1	0.64F	GN	0.35			X2010	1
23	AMP	1674311-1	0.64F	BU	0.35			X2011	3
24	AMP	1674311-1	0.64F	YE	0.35			X2017	1
25	AMP	1674311-1	0.64F	VT	0.35			X2008	3
26	AMP	1674311-1	0.64F	RD	0.35			X2014	1
27	unused
28	AMP	1674311-1	0.64F	YE	0.35			X2006	8
29	AMP	1674311-1	0.64F	BN	0.35			X2005	1
30	AMP	1674311-1	0.64F	GY	0.35			X2005	2
31	AMP	1674311-1	0.64F	WH	0.35			X2006	6
32	AMP	1674311-1	0.64F	VT	0.35			X2006	5
33	AMP	1674311-1	0.64F	BU	0.35			X2006	4
34	AMP	1674311-1	0.64F	GN	0.35			X2006	7
35	AMP	1674311-1	0.64F	VT	0.35			X2007	2
36	AMP	1674311-1	0.64F	YE	0.35			X935M	11
37	unused
38	unused
39	AMP	1674311-1	0.64F	WH	0.35			X2011	2
40	AMP	1674311-1	0.64F	BN	0.35			X2007	4
