X2003A

Tesla Part Number

1075258-00-A

Connector

AMP 1674312-2

Color

BK

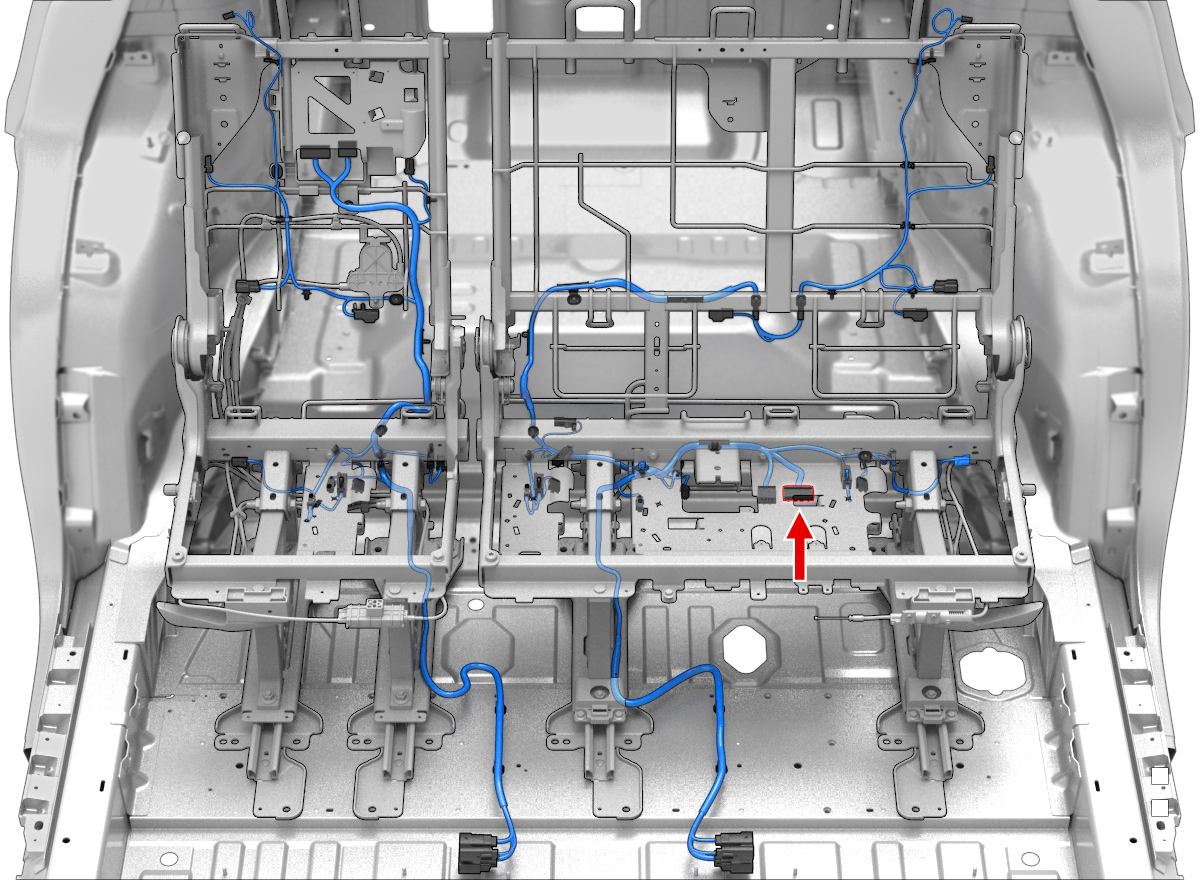

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1674311-7	0.64F	GY	0.35			X2018A	2
2	AMP	1674311-7	0.64F	GN	0.35			X2018A	1
3	unused
4	AMP	1674311-7	0.64F	GN	0.50			X2000A	14
5	AMP	1674311-7	0.64F	GN	0.50			X2000A	6
6	AMP	1674311-7	0.64F	OG	0.50			X2000A	13
7	unused
8	unused
9	unused
10	AMP	1674311-7	0.64F	RD	0.50			X2000A	10
11	AMP	1674311-7	0.64F	GN/WH	0.35			X2016A	1
12	AMP	1674311-7	0.64F	WH	0.50			X2051A	1
13	AMP	1674311-7	0.64F	RD	0.35			X2020B	1
14	AMP	1674311-7	0.64F	BK	0.35			X2020B	2
15	unused
16	unused
17	AMP	1674311-7	0.64F	BN/WH	0.50			X2000A	2
18	AMP	1674311-7	0.64F	BN	0.50			X2000A	3
19	unused
20	unused
21	AMP	1674311-7	0.64F	BK	0.50			X2008A	4
22	AMP	1674311-7	0.64F	BU/WH	0.35			X2010A	1
23	AMP	1674311-7	0.64F	VT	0.50			X2000A	4
24	unused
25	AMP	1674311-7	0.64F	OG	0.50			X2008A	3
26	AMP	1674311-7	0.64F	GY	0.35			X2000A	12
27	unused
28	AMP	1674311-7	0.64F	BK	0.50
29	unused
30	AMP	1674311-7	0.64F	BU/WH	0.50			X2000A	11
31	unused
32	unused
33	unused
34	unused
35	AMP	1674311-7	0.64F	GN	0.35			X2019A	2
36	AMP	1674311-7	0.64F	RD/WH	0.35			X2014A	1
37	unused
38	unused
39	unused
40	unused
