X2005

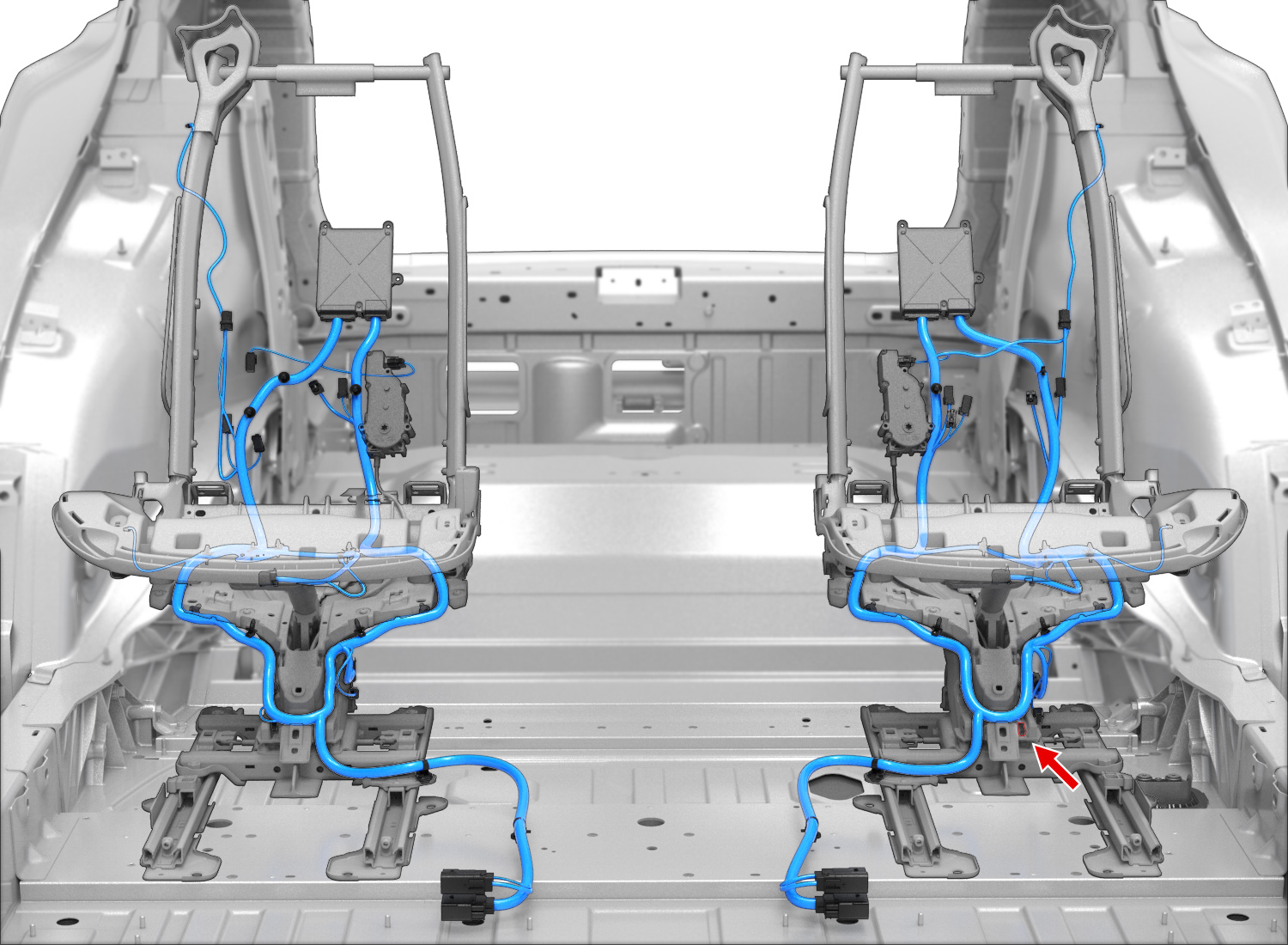

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2098762-4 | 0.64x0.64F | BN | 0.35 | X2003 | 29 | ||
| 2 | AMP | 2098762-4 | 0.64x0.64F | GY | 0.35 | X2003 | 30 |
