X201

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

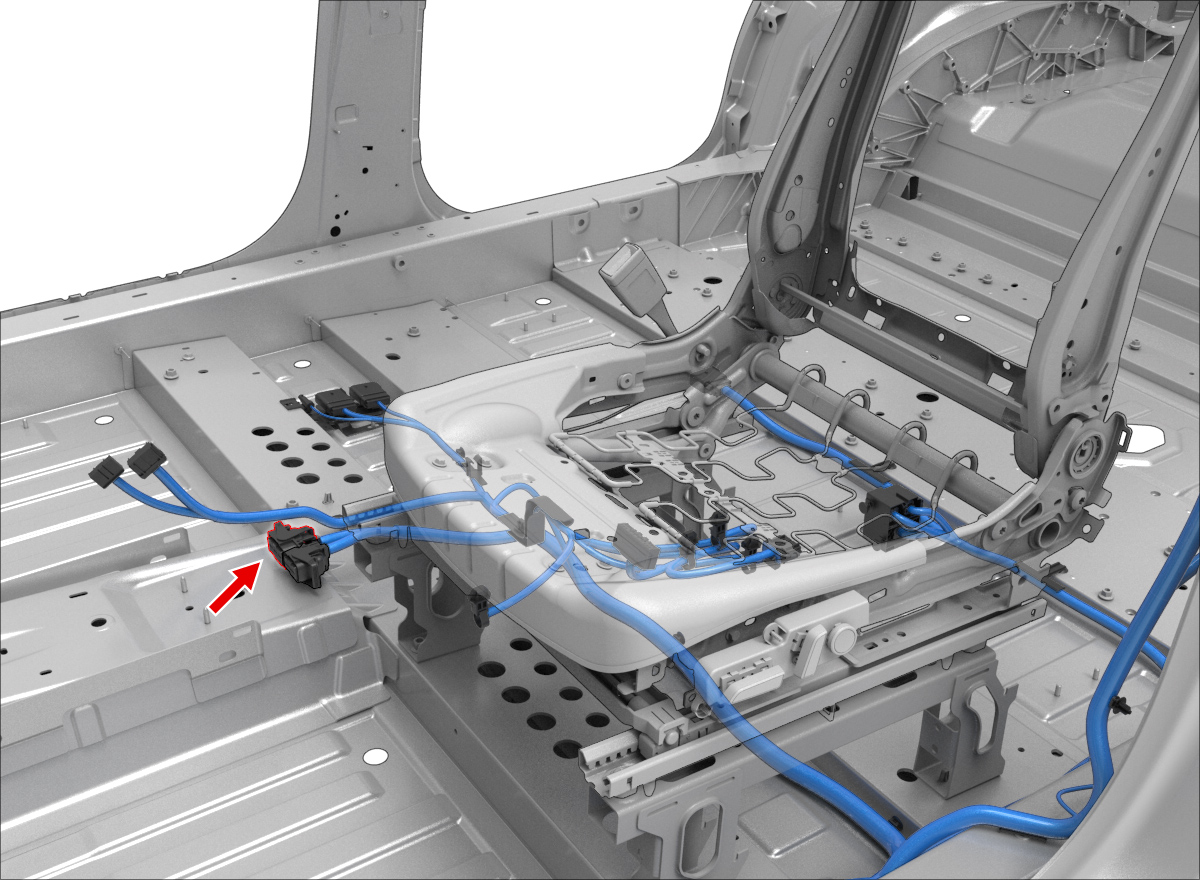

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X997M	1
2	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X997M	2
3	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X217	2
4	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X217	1
5	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X030A	24
6	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X030A	11
7	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X030A	10
8	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X030A	23
9	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X966M	14
10	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X966M	15
11	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X225	2
12	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X225	1
13	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X997M	16
14	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X997M	17
15	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X997M	14
16	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X997M	13
17	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X221	1
18	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X221	2
19	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X966M	4
20	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X966M	5
21	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X219	2
22	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X219	1
23	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X970M	9
24	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X970M	19
25	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X966M	13
26	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X966M	12
27	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X235	1
28	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X235	2
29	unused
30	unused
31	unused
32	unused
33	unused
34	unused
35	unused
36	unused
37	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X997M	12
38	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X997M	11
39	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X206	1
40	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X206	2
41	unused
42	unused
43	unused
44	unused
45	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X031	44
46	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X031	29
47	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X996M	7
48	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X996M	8
49	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X208	2
50	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X208	1
51	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X966M	6
52	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X966M	7
53	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130
54	BOSCH	1928499468	0.50x0.40F	GN/WH	0.35	TESLA	MAT-110-130
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G250	1
56	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X913F	9
57	unused
58	unused
59	unused
60	unused
61	unused
62	unused
63	unused
64	unused
65	unused
66	unused
67	unused
68	unused
69	unused
70	unused
71	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X030A	1
72	BOSCH	1928499468	0.50x0.40F	YE/WH	0.35	TESLA	MAT-110-130	X030A	13
