X2011A

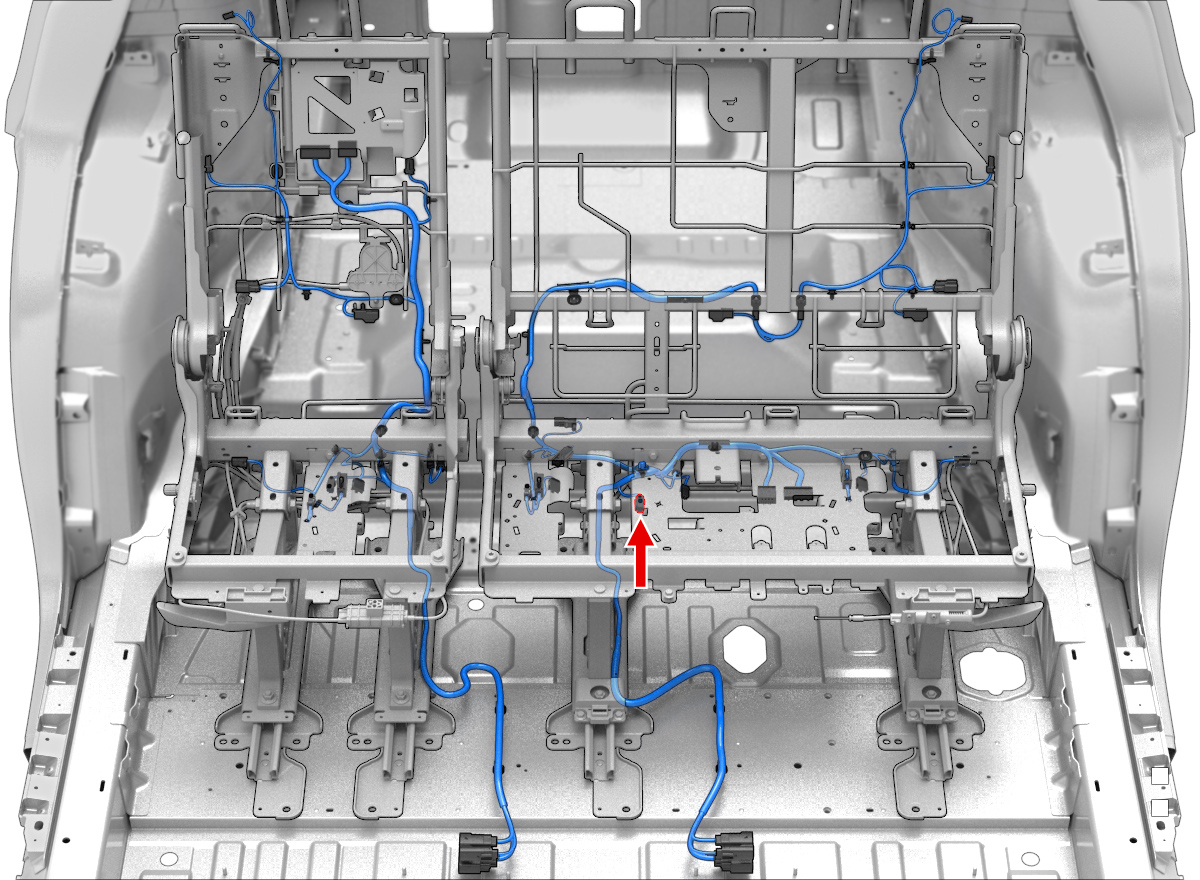

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35031567 | 1.5x0.8F | BU | 0.50 | X2051A | 2 | ||
| 2 | DELPHI | 35031567 | 1.5x0.8F | BK | 0.50 |
