X2018A

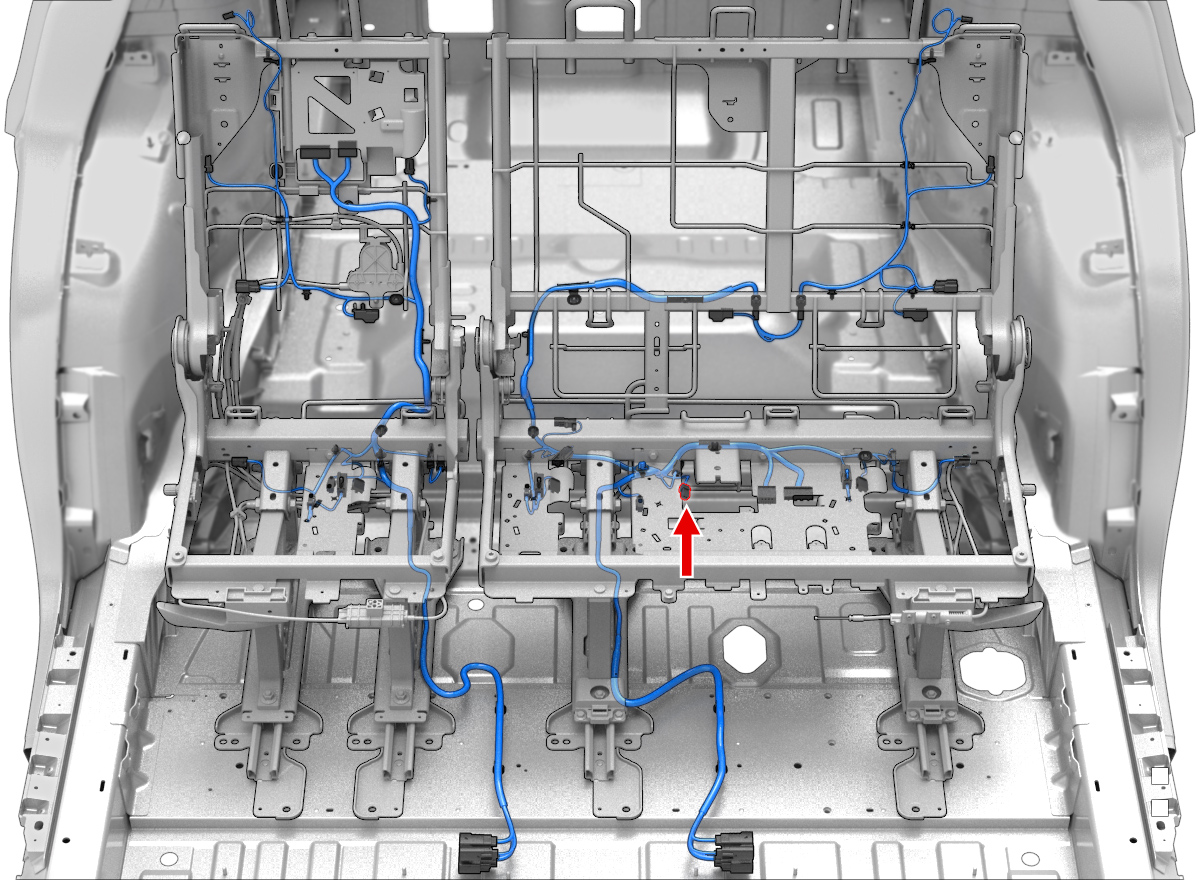

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-1470 | 2.3x0.64F | GN | 0.35 | X2003A | 2 | ||
| 2 | SUMITOMO | 8100-1470 | 2.3x0.64F | GY | 0.35 | X2003A | 1 |
