X2018B

Tesla Part Number
1054279-00-B
Connector
MOLEX 31280-4448
Color
YL

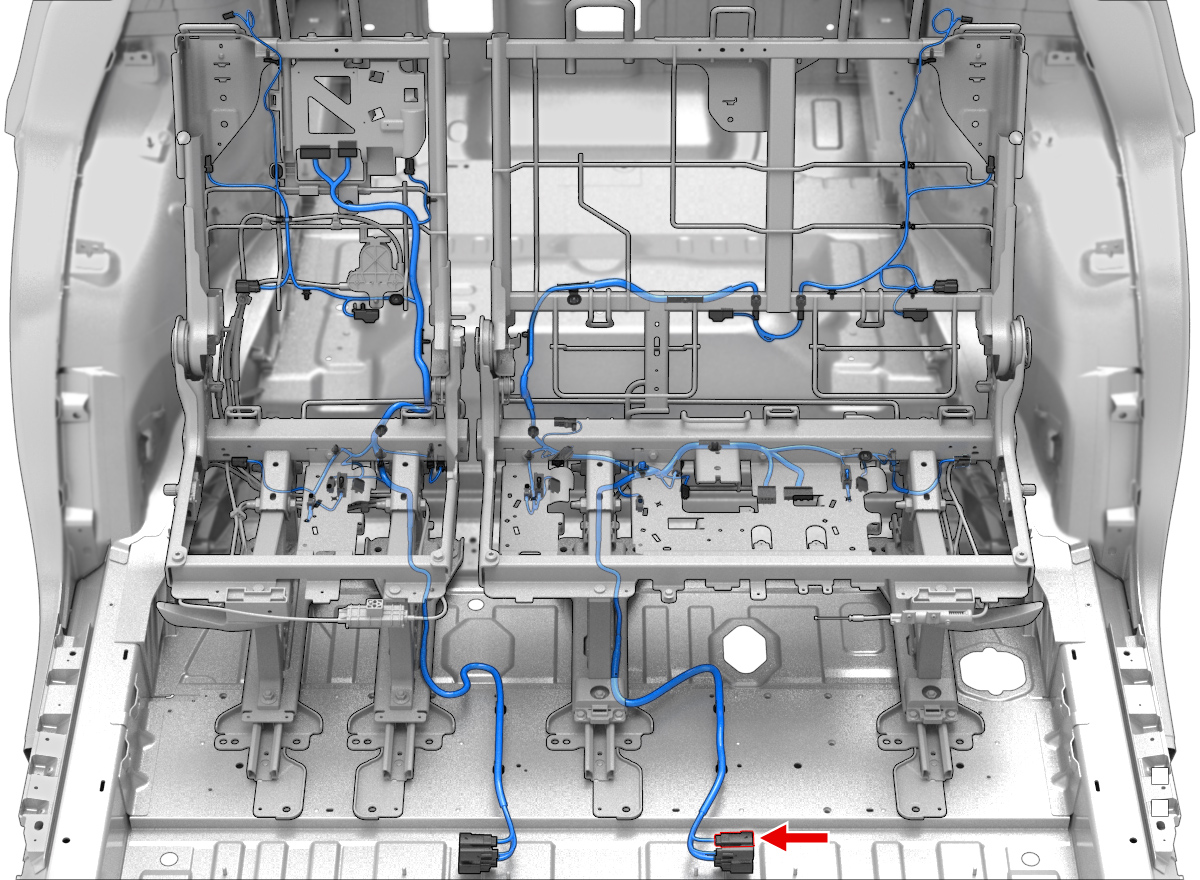

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX3129600081.5x0.8FOG0.50TESLAMAT-140-206X2018C1
2MOLEX3129600081.5x0.8FBU0.50TESLAMAT-140-206X2018C2
3MOLEX3129600081.5x0.8FBK0.50TESLAMAT-140-206X2018C3
4MOLEX3129600081.5x0.8FWH0.50TESLAMAT-140-206X2018C4
