X2019B

Tesla Part Number
1097914-00-A
Connector
TOKAI-RIKA 4F5460-0001
Color
WH

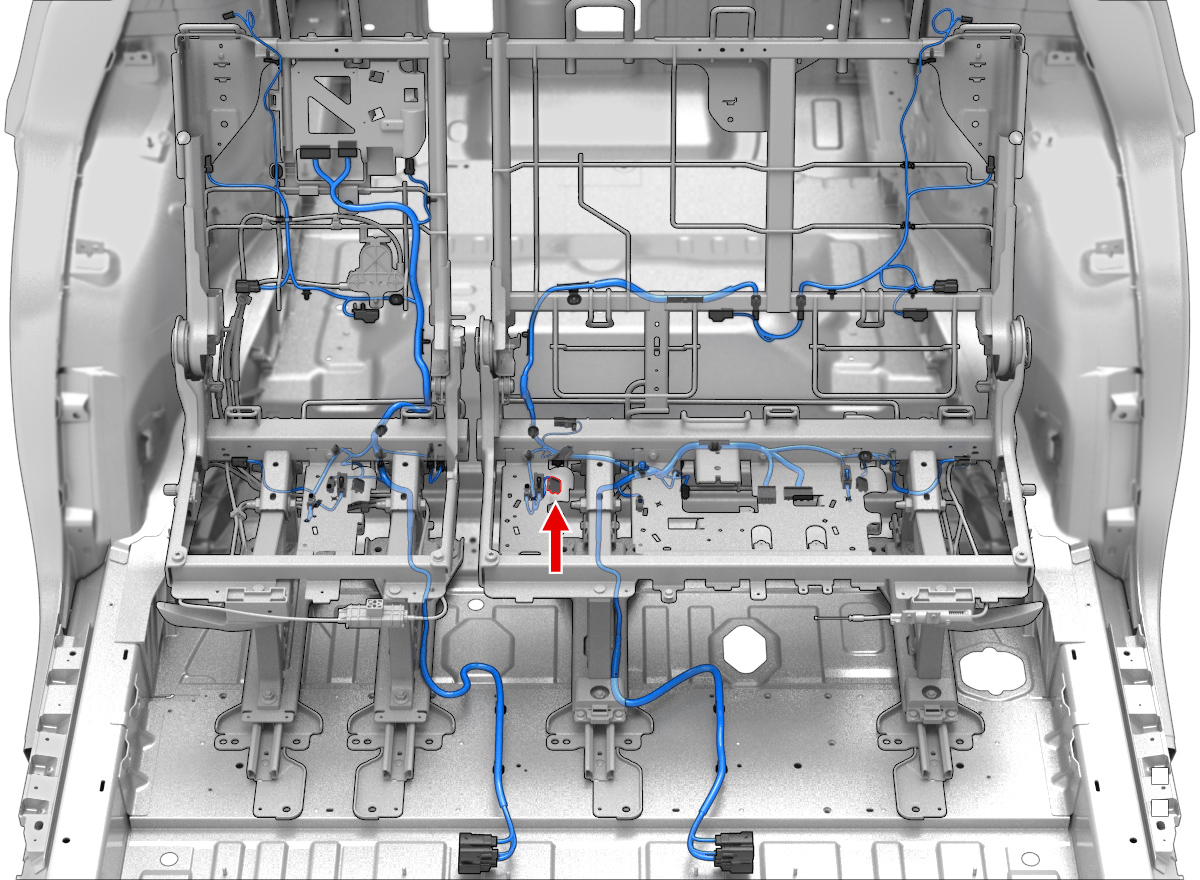

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI15316667090FVT0.50
2unused
3unused
4DELPHI15316667090FBN0.50
