X2020B

Tesla Part Number
1095536-00-C
Connector
DELPHI 35221726
Color
BK

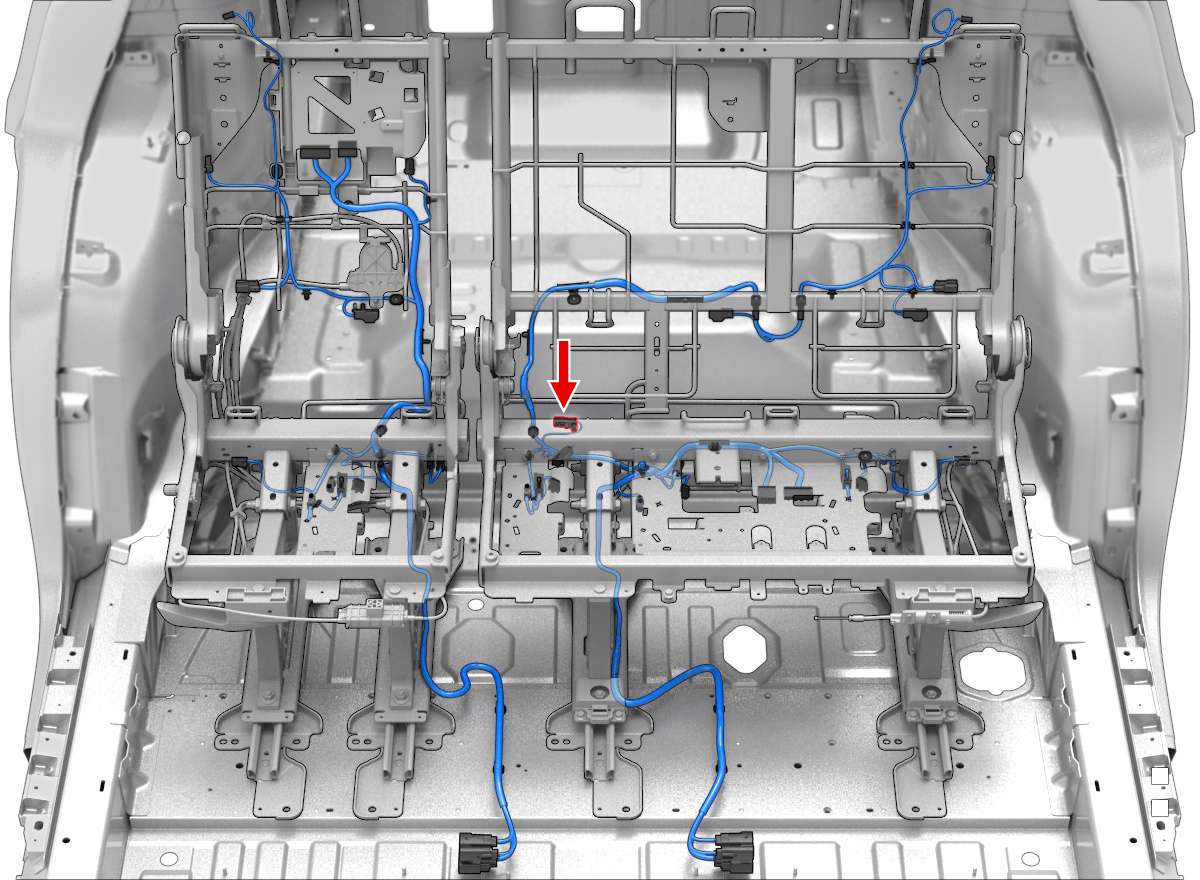

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1RD0.35X2003A13
2BK0.35X2003A14
