X2048A

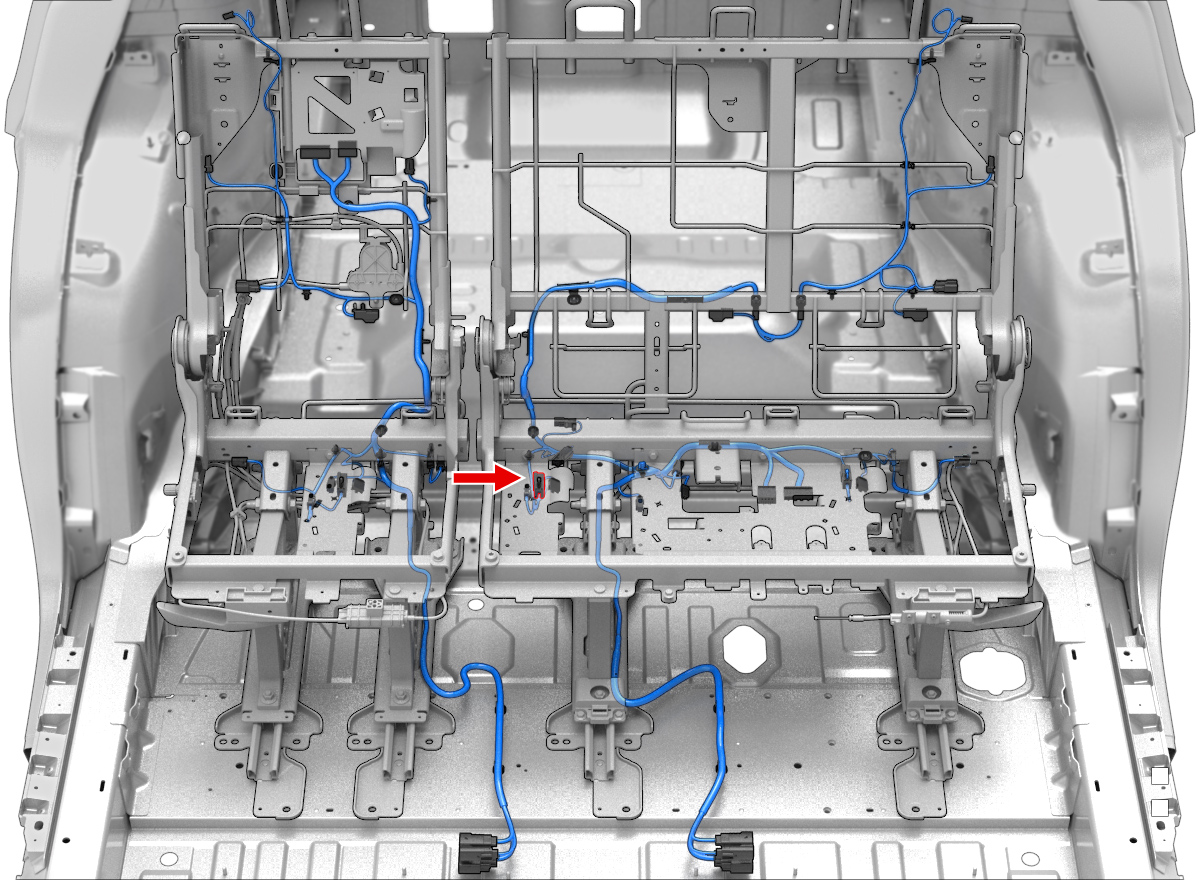

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4101-02 | 1.5x0.8M | GN | 0.75 | ||||
| 2 | YAZAKI | 7114-4101-02 | 1.5x0.8M | BK | 0.75 | ||||
| 3 | YAZAKI | 7114-4100-02 | 1.5x0.8M | OG | 0.50 | X2003A_1 | 9 | ||
| 4 | YAZAKI | 7114-4100-02 | 1.5x0.8M | BK | 0.50 |
