X206

Tesla Part Number
1496687-02-A
Connector
DELPHI 35126366
Color
BU

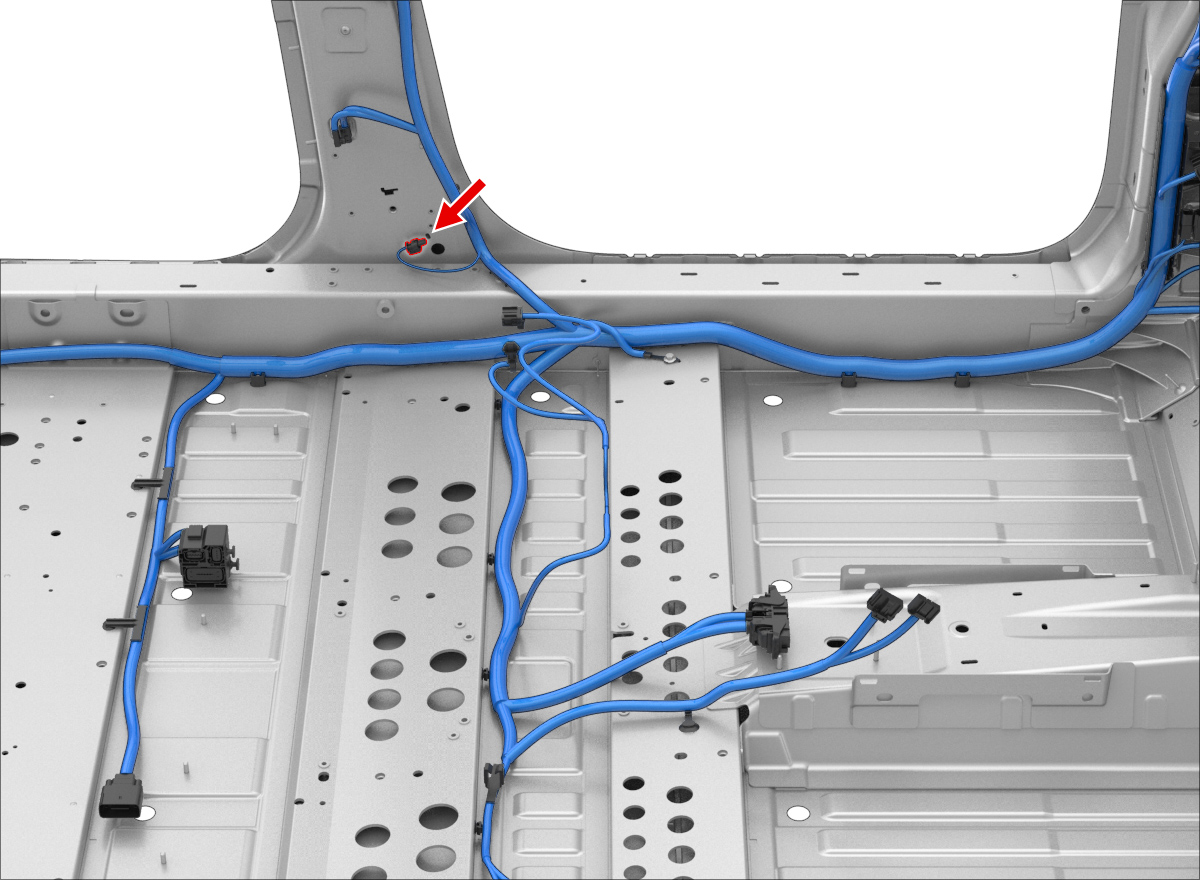

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP7-1452665-31.2x0.6FSYE0.35AMP967067-2X20139
2AMP7-1452665-31.2x0.6FSGN0.35AMP967067-2X20140
